CMTS Docsis 3.0, 2.0 max 64 modems – EC1000
Smart energy management for data centers and server rooms.
The ATEN EC1000 offers real-time power consumption monitoring, supports various PDUs, and is easily managed via network connection.

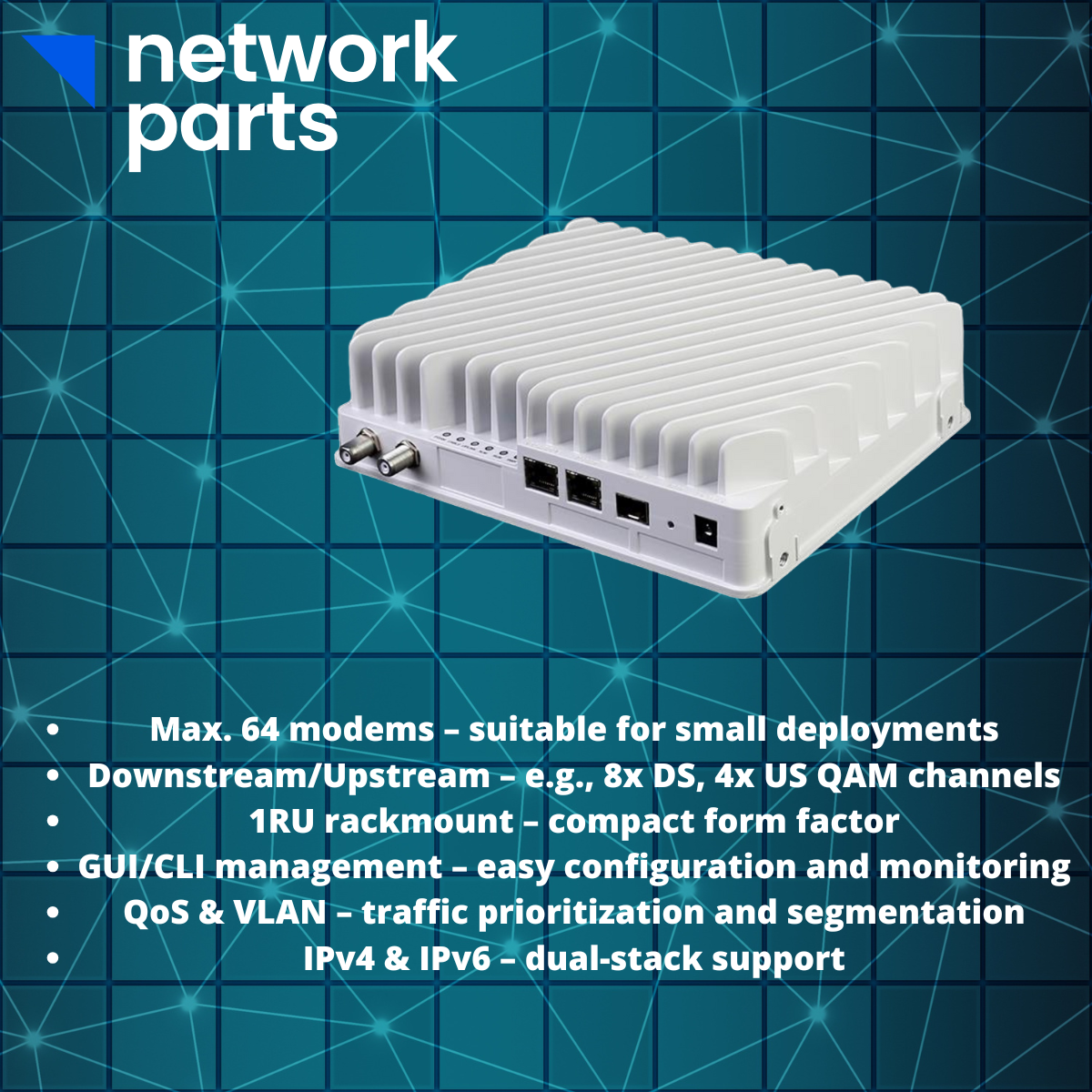

EC1000 – Outdoor coax gateway / CMTS node
Outdoor
Fanless
2× RF coax
2× RJ45
DC power
Highlights
- Rugged outdoor enclosure with passive cooling (fanless)
- 2× RF coax (F-type) for DS/US connection (labels t.b.c.)
- 2× GE (RJ45) data ports + 1× service USB
- DC power (barrel jack); consumption and voltage range t.b.c.
- LED status indication on the side
- Fixed wall/mast mounting (mounting points in the enclosure)
Management & Operations
- Management via web/CLI/SSH/SNMP (depending on firmware) – t.b.c.
- Remote monitoring: RF levels, logs, temperature – t.b.c.
- Provisioning via DHCP/TFTP/ToD (for DOCSIS/EoC scenarios) – t.b.c.
RF section
- RF coax: 2× F-female, intended for downstream/upstream or combined – labels t.b.c.
- Measurement/service access and exact frequency ranges to be defined later
Technical specifications
| Category | Outdoor coax gateway / compact CMTS node |
|---|---|
| Enclosure | Full aluminum with large cooling fins, passive cooling |
| Protection rating | IP rating t.b.c. (expected IP65/67) |
| RF connections | 2× F-female (DS/US or combined) |
| Ethernet | 2× RJ45 (GE, t.b.c.), 1× USB-A (service) |
| Power supply | DC input (barrel jack), specifications t.b.c. |
| Temperature range | t.b.c. (expected outdoor range) |
| Dimensions/Weight | t.b.c. |

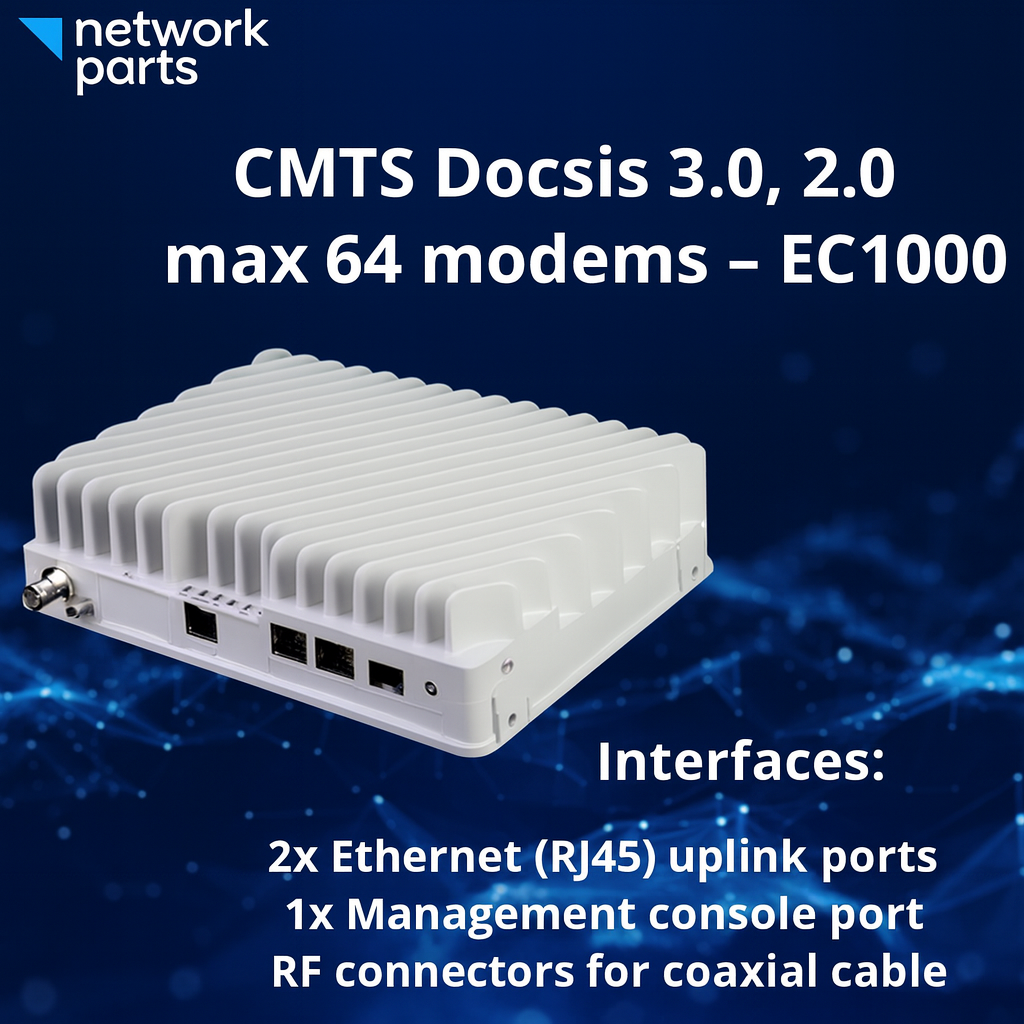

CMTS Docsis EC1000 – Reliable Solution for Mid-Scale Networks
Supports Docsis 3.0 / 2.0 • Up to 64 Modems • Stable 1 Gbps Performance
CMTS Docsis EC1000
Compact and reliable solution for mid-scale networks – up to 64 modems, stable 1 Gbps performance
| Weight | 1,68 kg |
|---|---|
| Dimensions | 26,5 × 9,5 × 22 cm |
| Type Product | Energy management device / PDU metering device |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Temperature Range | Work: 0°C – 50°C, Storage: -20°C – 60°C |
