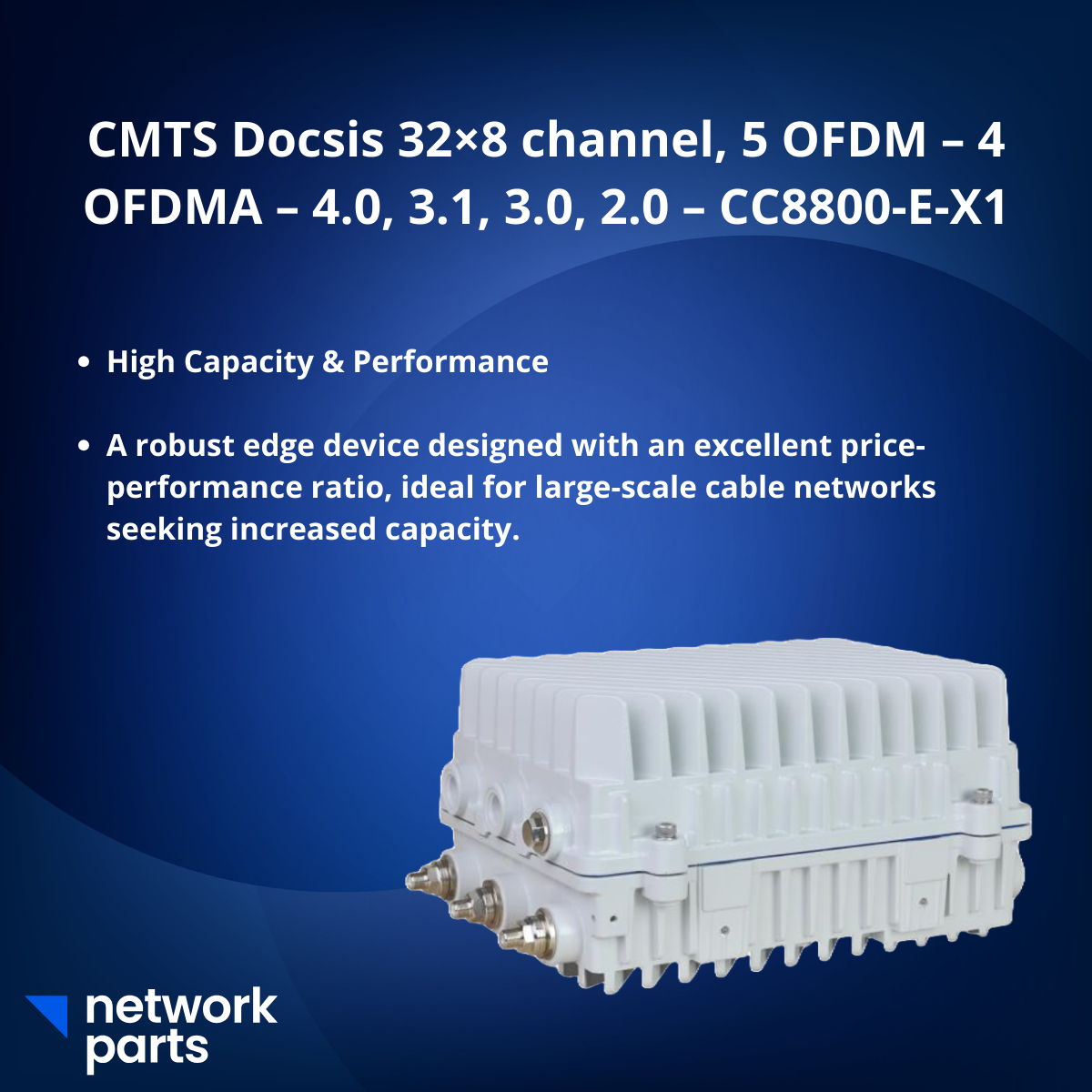

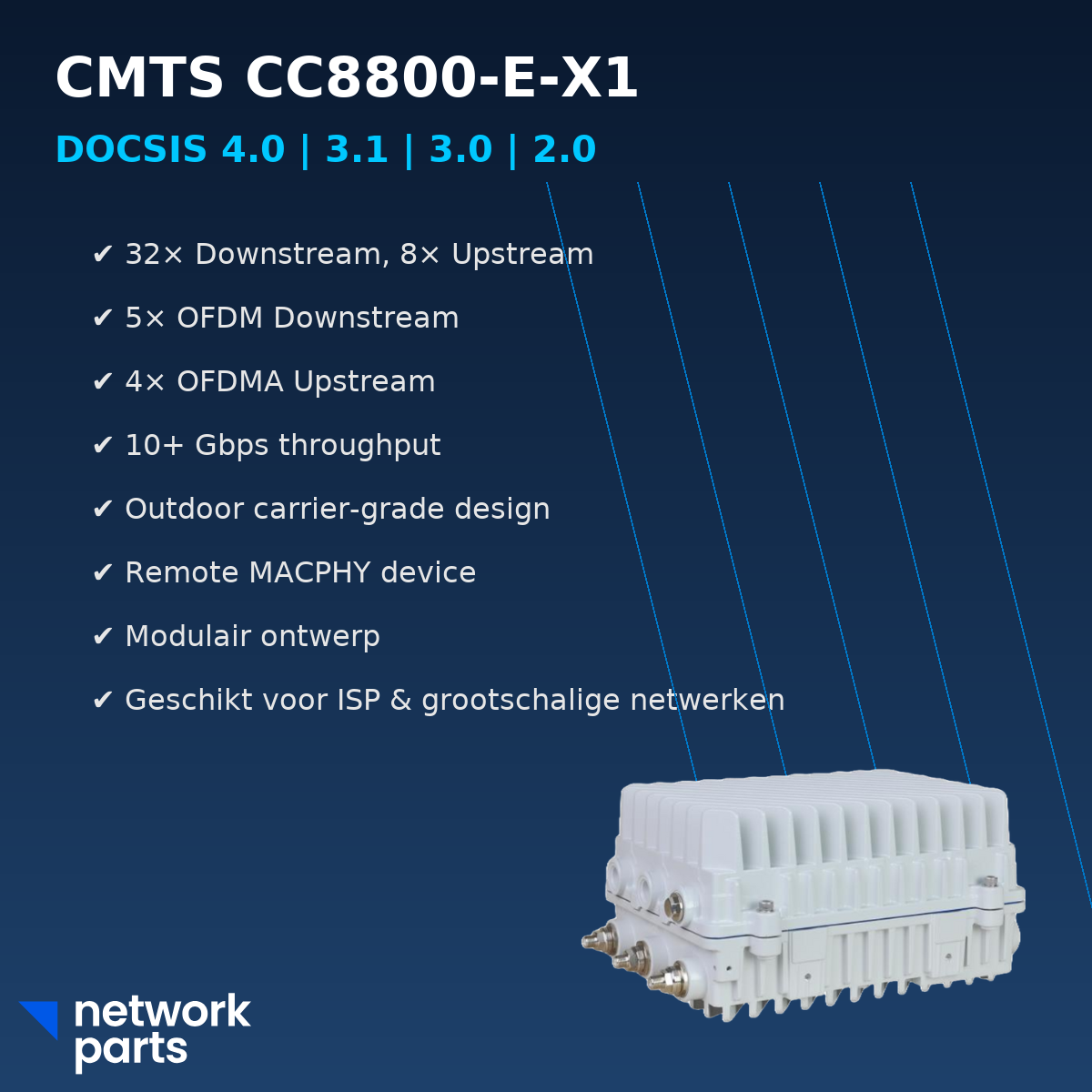

CMTS Docsis 32×8 channel, 5 OFDM – 4 OFDMA – 4.0, 3.1, 3.0, 2.0 – CC8800-E-X1
Advanced outdoor CMTS for DOCSIS 4.0 networks.
The CC8800-E-X1 offers high capacity, robust performance, and is weather-resistant.
Perfect for ISPs requiring reliable and scalable outdoor solutions.
| Item — CC8800-E-X1 | |
|---|---|
| Chassis | 1U 19″ Rackmount |
| DOCSIS | 4.0 / 3.1 / 3.0 / 2.0 compliant |
| Downstream Channels | 32× SC-QAM + 5× OFDM |
| Upstream Channels | 8× ATDMA + 4× OFDMA |
| Uplink Ports | 2× 10GbE uplink (RJ45 / SFP+) |
| Management Ports | 2× RJ45 (Console & Control) |
| Management | Web GUI, CLI (Console/SSH), SNMP v2/v3 |
| Monitoring | Real-time modem status, RF levels, logs, flap-list |
| Provisioning | DHCP/TFTP/ToD – multiple service tiers & QoS |
| Security | BPI+, ACLs, Traffic Filtering |
| IPv6 Support | Dual-stack IPv4 / IPv6 |
| RF Section | Downstream: 32× SC-QAM + 5× OFDM Upstream: 8× ATDMA + 4× OFDMA RF connectors: F-type (DS / US / monitoring) |
| Status Indicators | LEDs for Power, Alarm, Cable Activity |
| Power Supply | Dual AC 100–240 V, hot-swappable |
| Cooling | Active cooling with redundant fans |
| Dimensions/Weight | t.b.c. |
| Ordering Info | ||
|---|---|---|
| Product Model | Product Specification | Accessories |
| CC8800-E-X1 | 32× Downstream + 5× OFDM, 8× Upstream + 4× OFDMA, 2× 10GbE uplink (RJ45/SFP+), DOCSIS 4.0/3.1/3.0/2.0, Dual AC power | Rackmount kit, Console cable, Power cords |
Compact CMTS
DOCSIS 4.0/3.1/3.0/2.0 • 32x8 channels + OFDM/OFDMA • High-performance & cost-efficient • Full-featured GUI/CLI management
Compact CMTS
DOCSIS 4.0/3.1/3.0/2.0 • 32x8 channels + OFDM/OFDMA • High-performance & cost-efficient • Full-featured GUI/CLI management
Next-Gen Compact CMTS
Optimized for small to mid-scale ISPs • Reliable 1 Gbps performance • Scalable design with IPv6 support • Advanced QoS and VLAN features
Next-Gen Compact CMTS
Optimized for small to mid-scale ISPs • Reliable 1 Gbps performance • Scalable design with IPv6 support • Advanced QoS and VLAN features
| Dimensions | 40 × 30 × 20 cm |
|---|---|
| Type Product | Outdoor CMTS / Remote PHY Node |
| Housing | Weatherproof, IP-rated aluminum chassis. |
| Cooling | Passive cooling fins. |
| Application | Outdoor installations for ISPs and cable networks. |
