V-Sol V5600x2 with 2x 8 port XGSpon modules
Professional modular OLT system for GPON/XGS-PON networks.

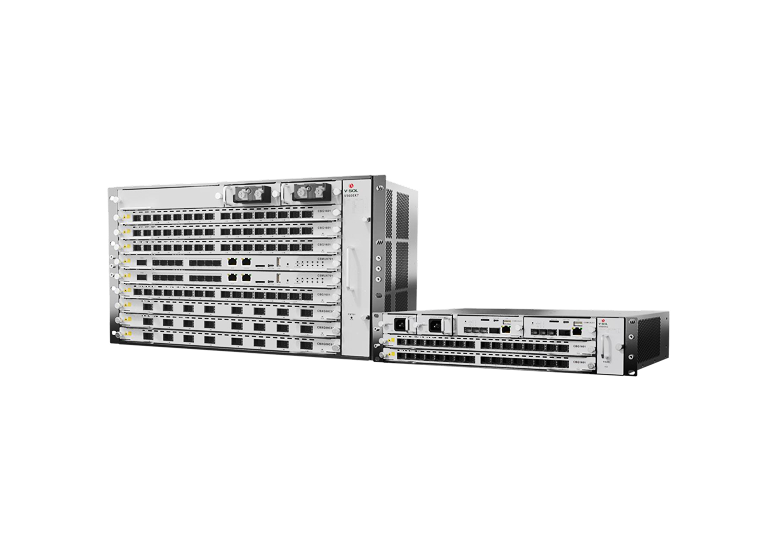

Includes V5600X7 (7 slots) and V5600X2 (2 slots), suitable for large-scale fiber deployments.
Supports redundant power supplies, hot-swappable modules, and uplinks up to 100GE for maximum reliability and performance.
| Item — V-SOL V5600x2 | |
|---|---|
| Chassis | 2U 19″ Rackmount |
| Type | Modular XGS-PON OLT |
| PON Ports | 2× 8-port XGS-PON modules (16× XGS-PON ports total) |
| Uplink Ports | 4× 10GE SFP+, 2× 100GE QSFP28 |
| Management Ports | 1× RJ45 Console, 1× MGMT GE port |
| Management | Web GUI, CLI (Console/SSH/Telnet), SNMP v2/v3, NETCONF |
| PON Capacity | Up to 256 ONUs per port (max 4096 ONUs) |
| Switching Capacity | 2.4 Tbps |
| Forwarding Rate | ~2000 Mpps |
| Security | ACL, Radius, MAC filtering, Encryption |
| IPv6 Support | Dual-stack IPv4 / IPv6 |
| Status Indicators | LEDs for Power, Alarm, PON, Uplink |
| Power Supply | Dual AC/DC hot-swappable PSU |
| Cooling | Redundant hot-swappable fans |
| Dimensions/Weight | 442 mm × 400 mm × 88 mm (2U), ~9 kg |
| Ordering Info | ||
|---|---|---|
| Product Model | Product Specification | Accessories |
| V5600x2 | 2× 8-port XGS-PON modules (16× XGS-PON total), 4× 10GE uplink, 2× 100GE uplink, 2.4 Tbps switching, Dual PSU | Rackmount kit, Console cable, Power cords |

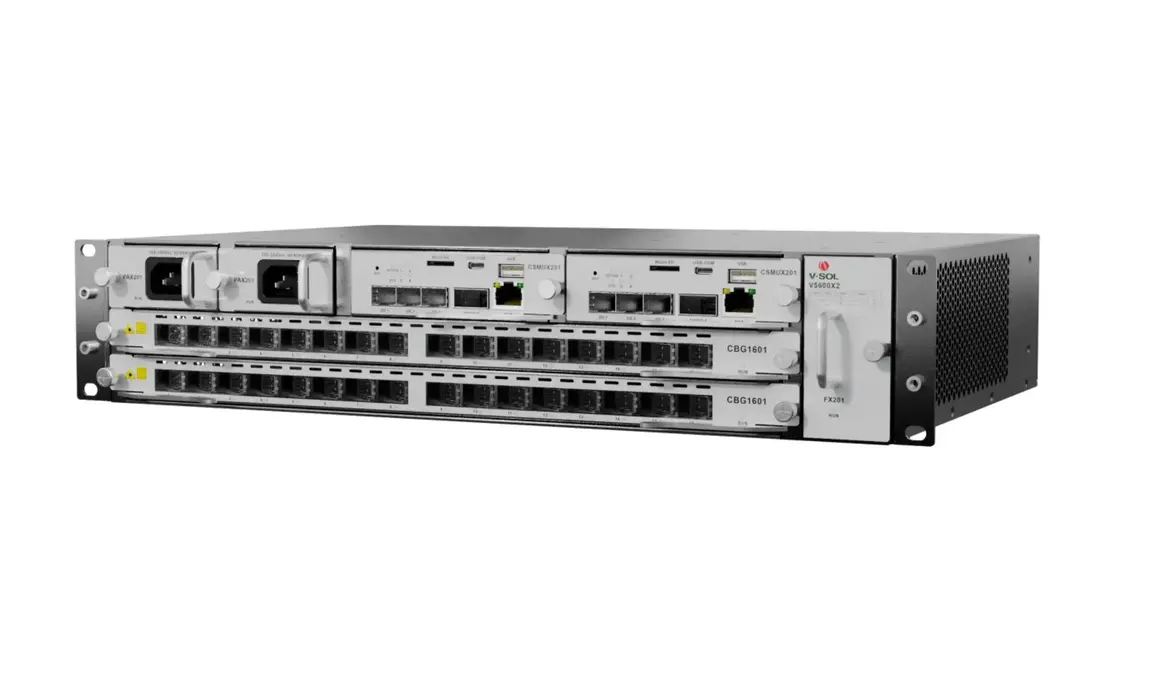

V-SOL V5600X2 XGS-PON OLT
Dual-slot modular design • Up to 2048 ONUs supported • Carrier-grade reliability • Ideal for ISPs, data centers & enterprise networks • Future-proof 10G PON access
V-SOL V5600X2 XGS-PON OLT
Dual-slot modular design • Up to 2048 ONUs supported • Carrier-grade reliability • Ideal for ISPs, data centers & enterprise networks • Future-proof 10G PON access
| Weight | 13,7 kg |
|---|---|
| Dimensions | 44,2 × 29,9 × 35,56 cm |
| Number of slots | V5600X7: 7, V5600X2: 2 |
| Uplink Ports | QSFP28 100 GE + SFP+ 10 GE |
| Temperature Range | Work: -20°C~+60°C, Storage: -40°C~+70°C |
