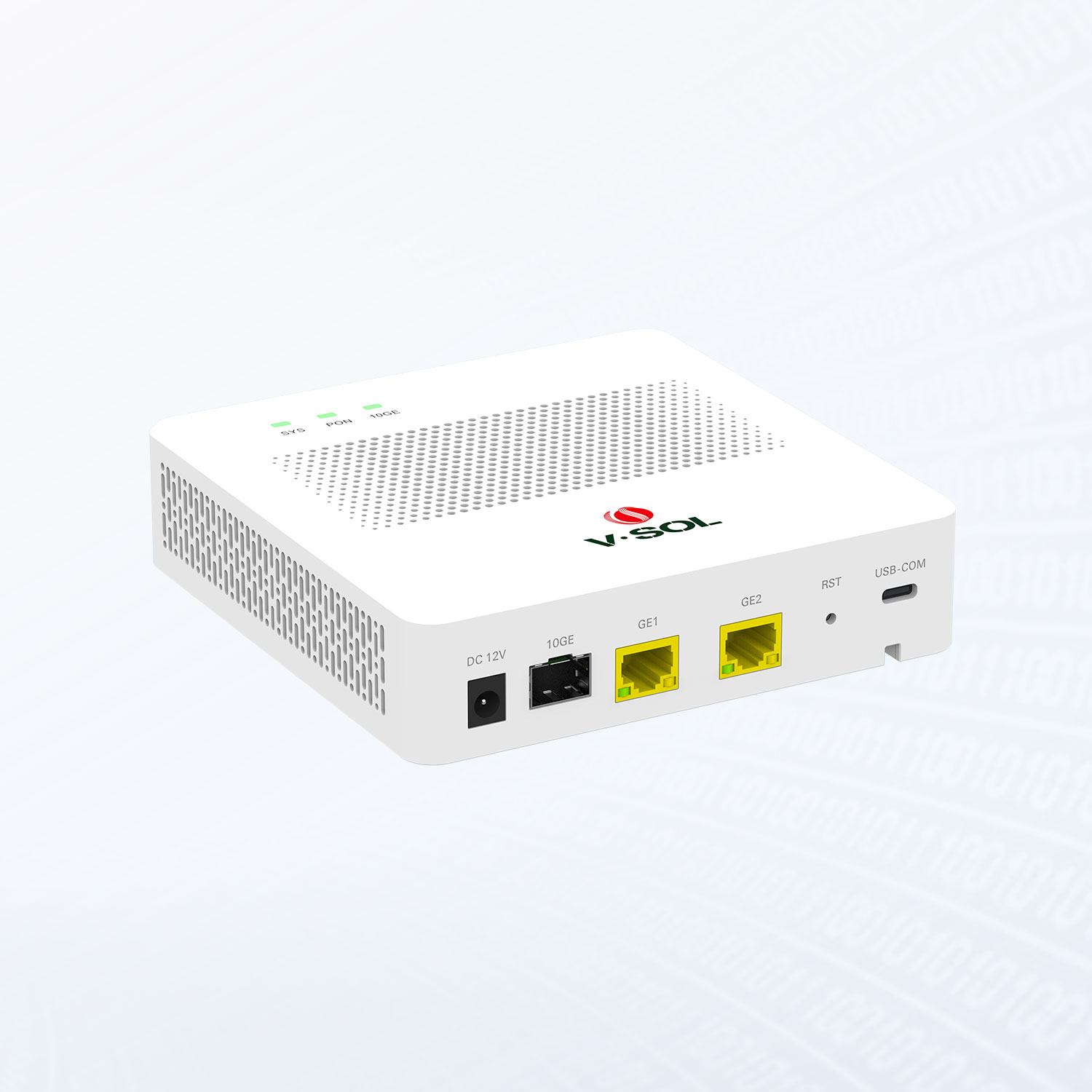

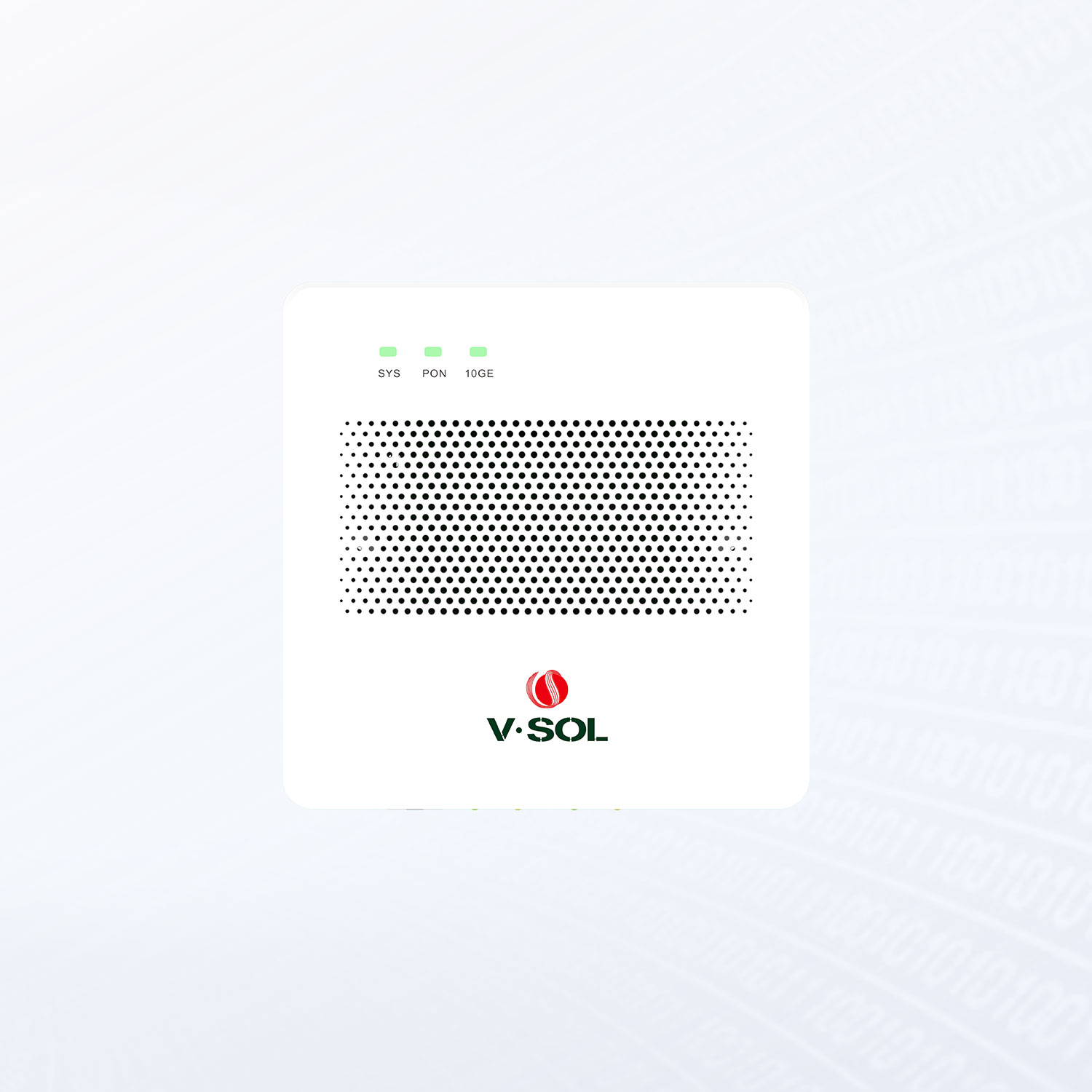

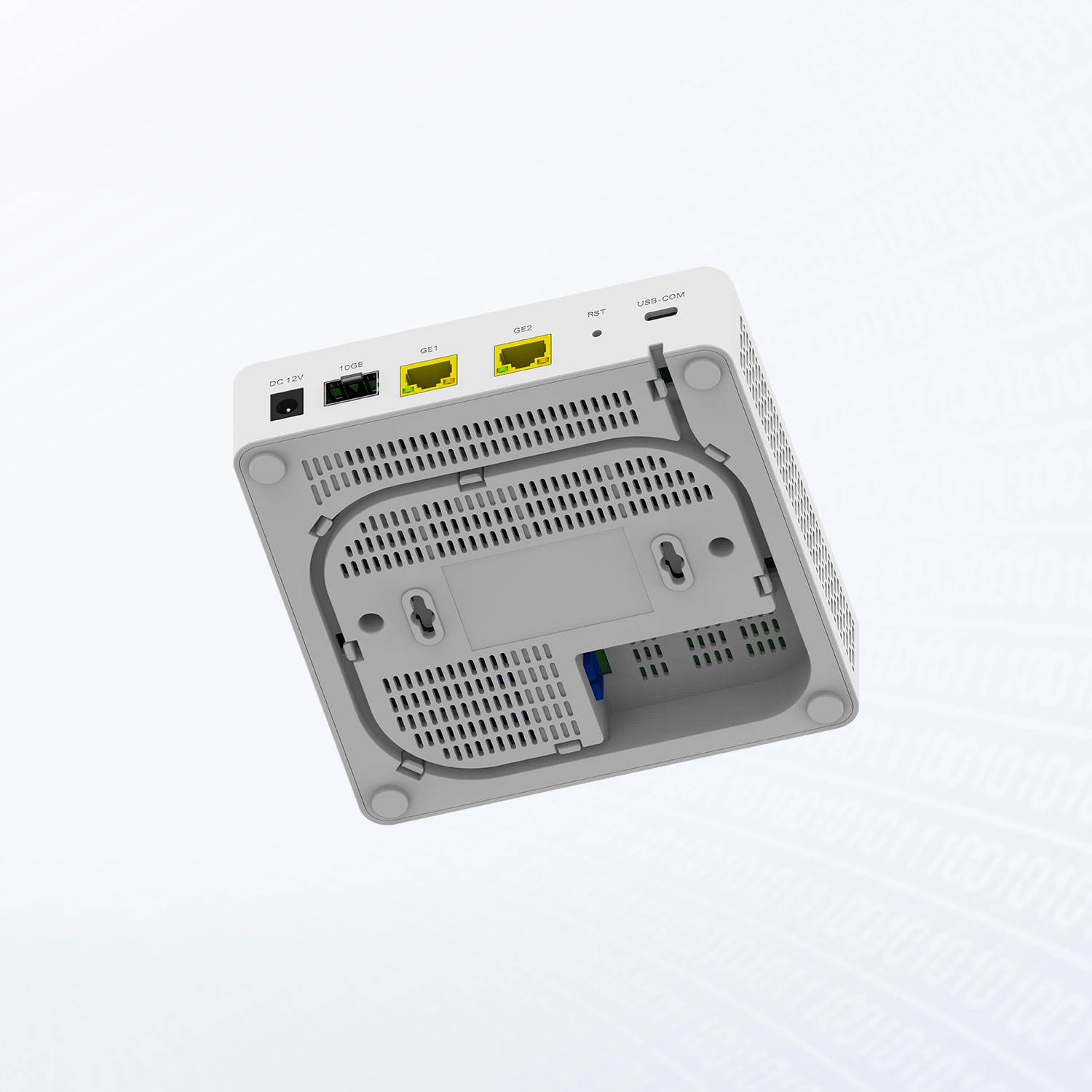

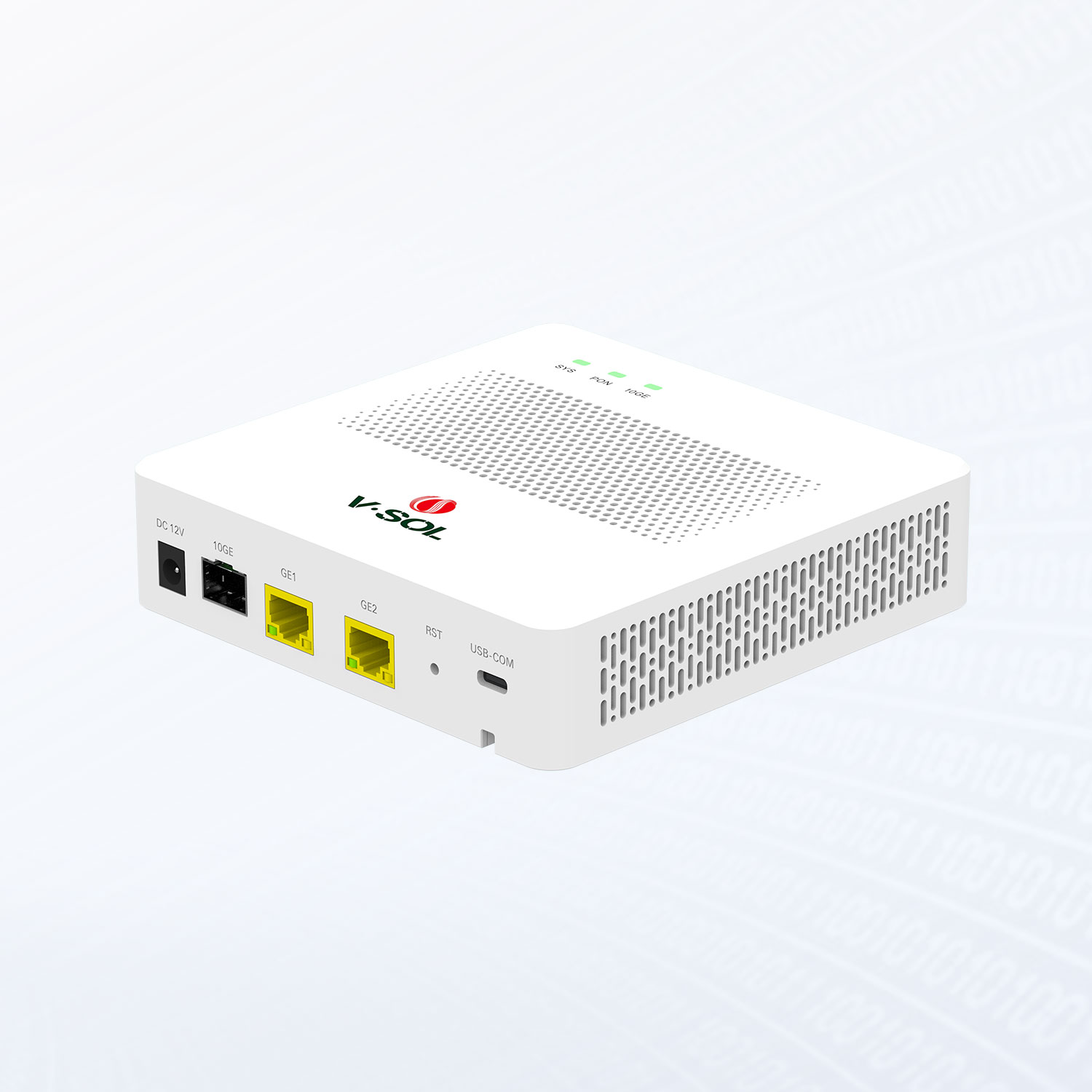

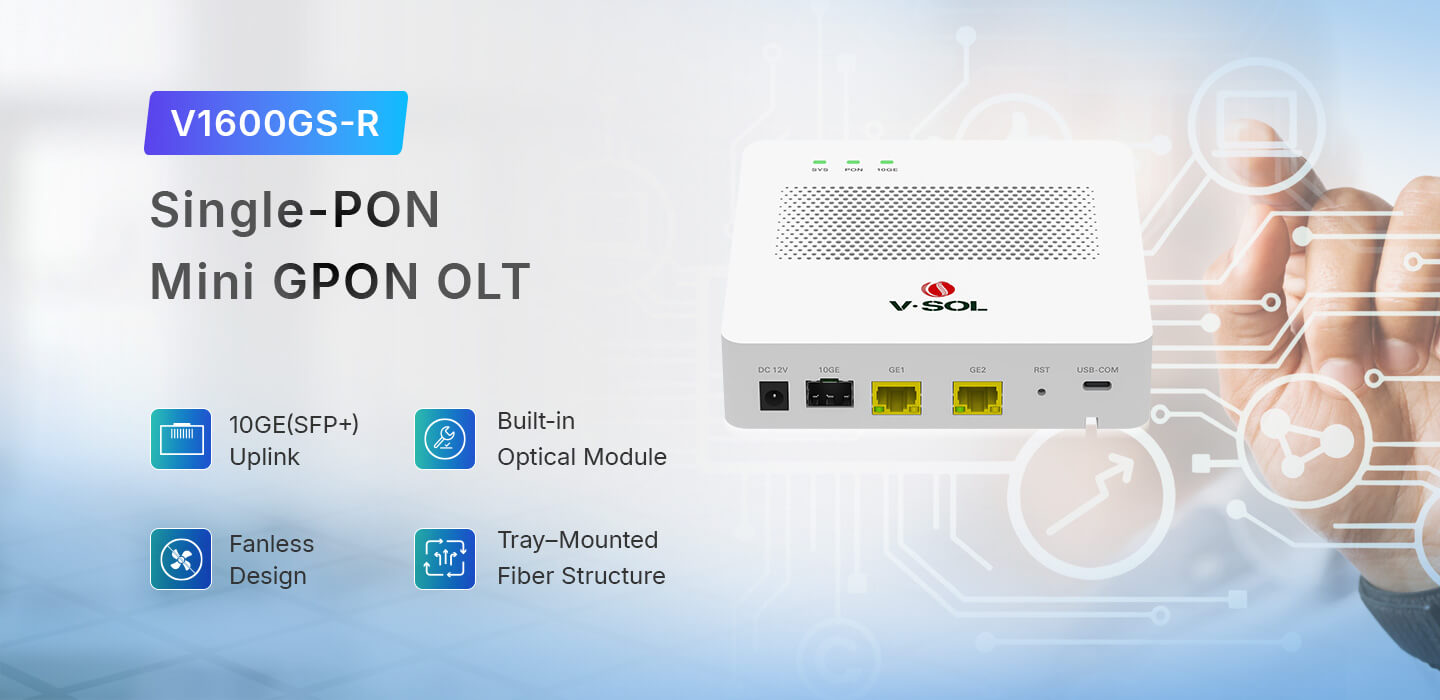

Single PON Mini GPON OLT
10GE(SFP+) Uplink | Split Ratio 1:64 | Fanless
Model: V1600GS-R
Compact, Cost-Effective, Flexible Deployment
Break the Traditional, Embrace the Desktop Core
High Value, Low Cost — The Smart Choice for Deployment

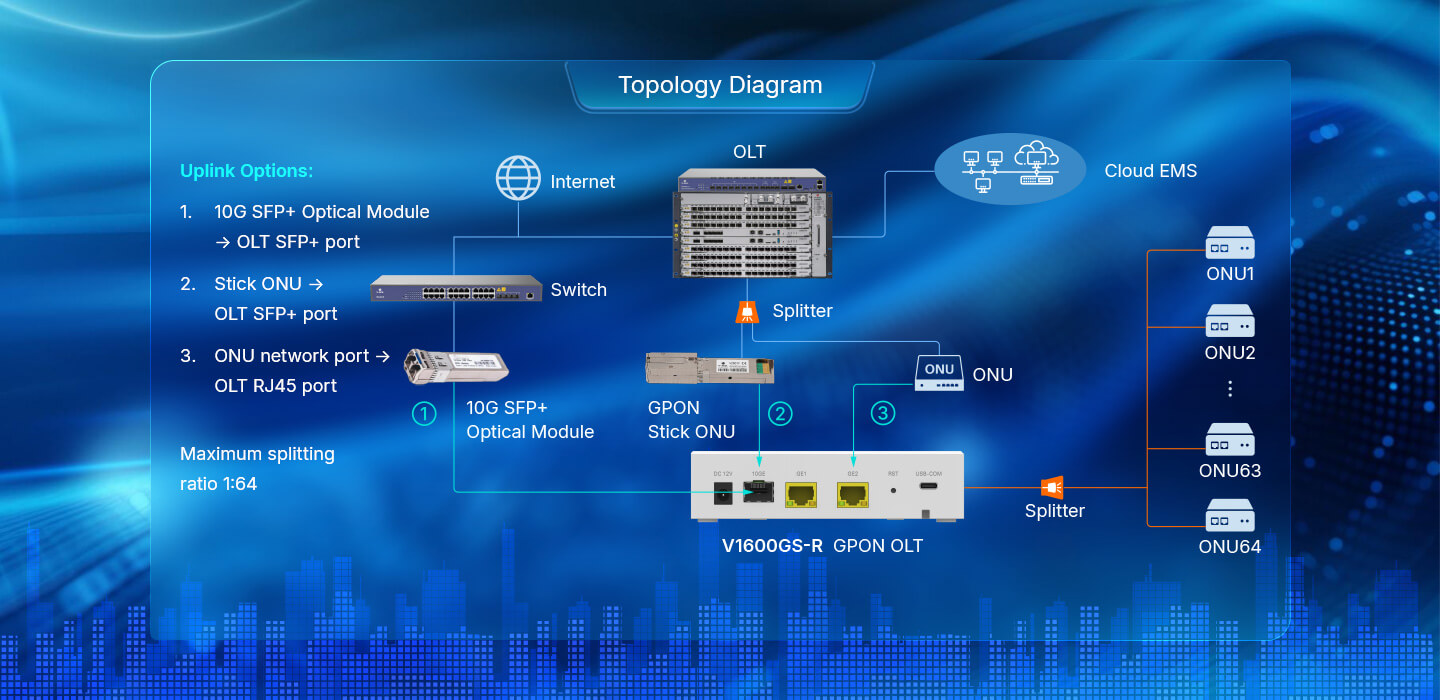

Full-Scenario Uplink, Defining the Future of Deployment

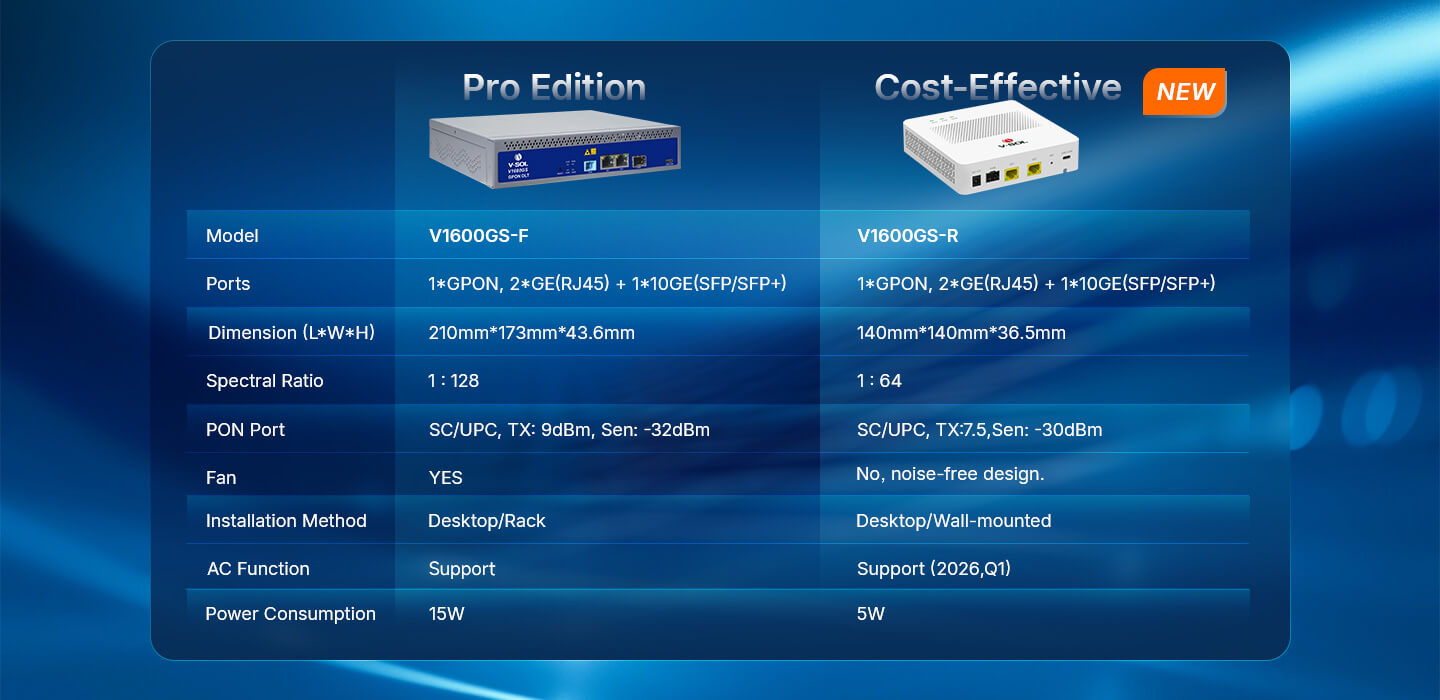

Choose on Demand, Precisely Matching Your Needs

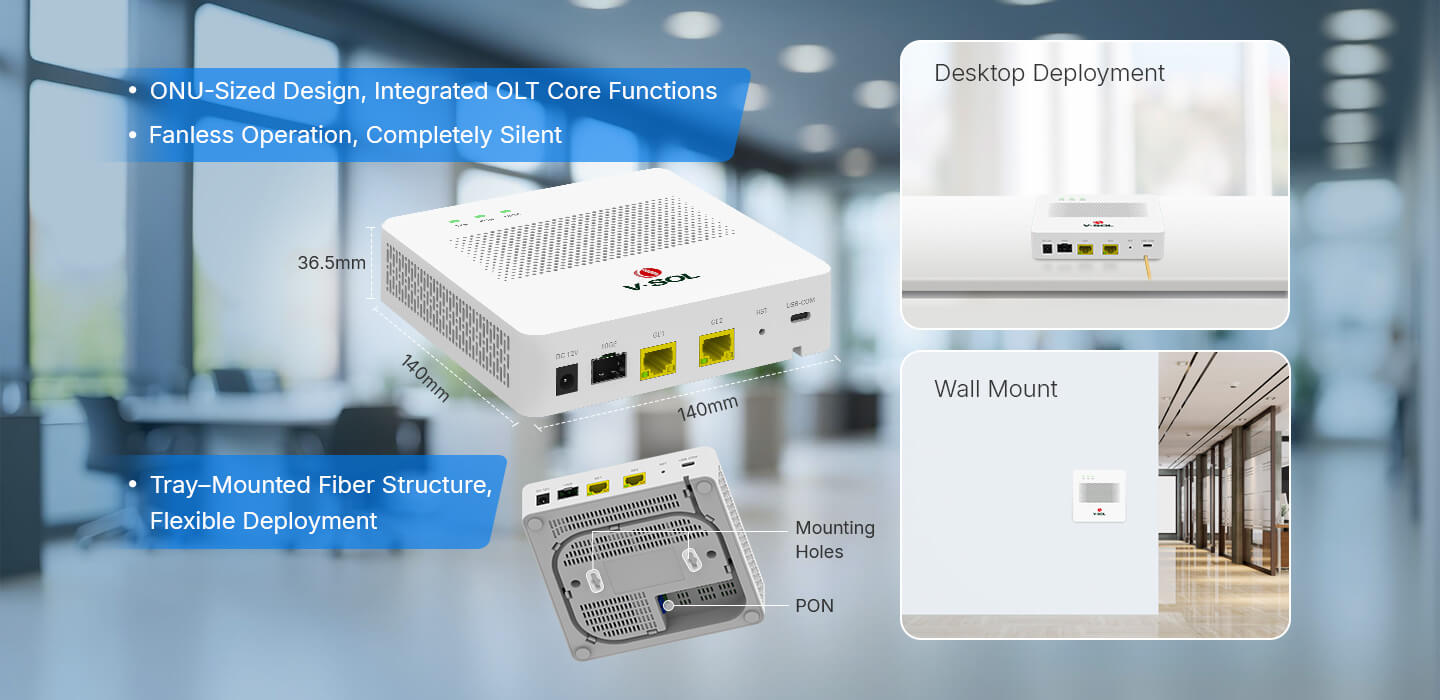

Flexible Deployment, Empowering SMB Scenarios
| Item | V1600GS-R | |

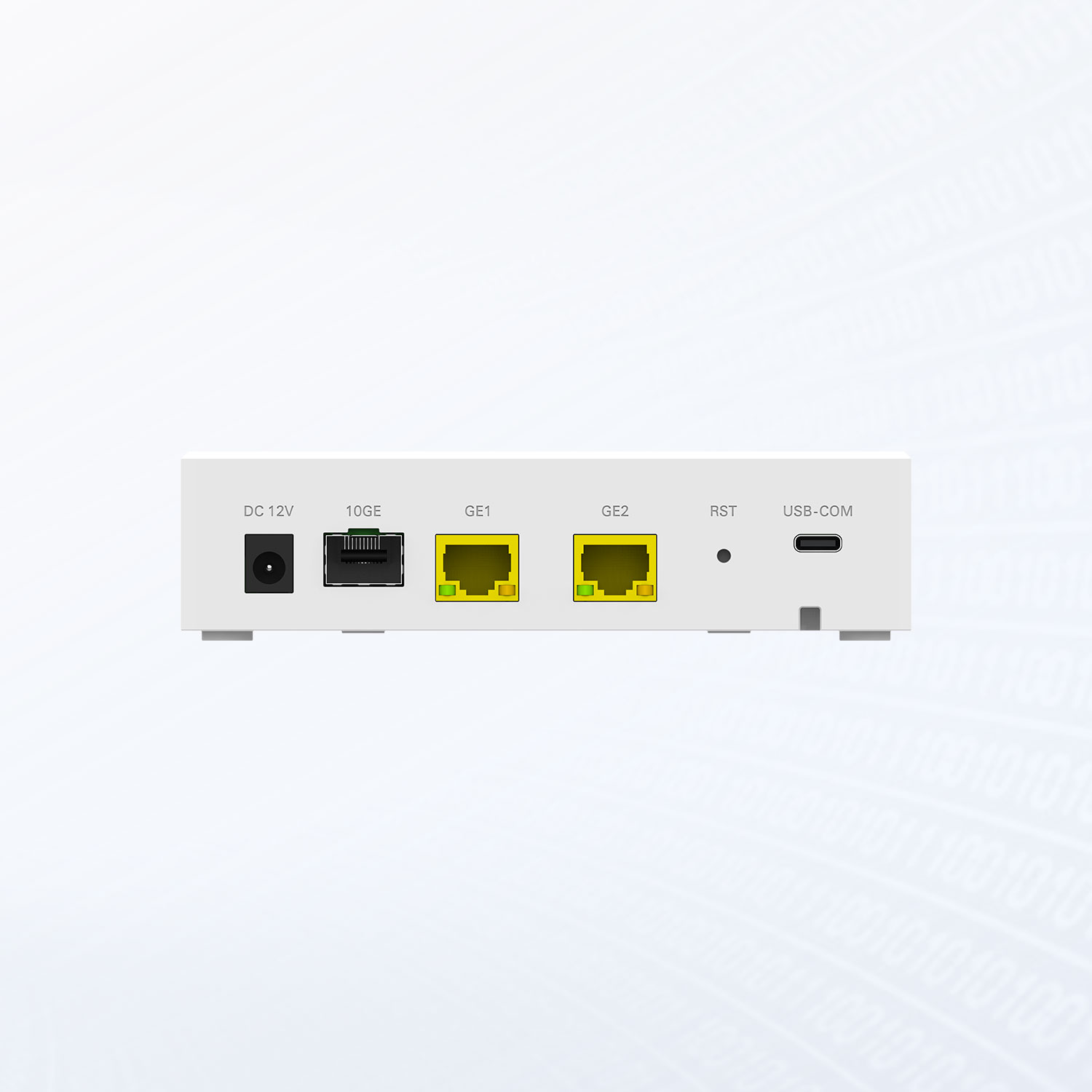

| Uplink Port | QTY | 3 |
| RJ45(GE) | 2 | |
| SFP(GE)/SFP+(10GE) | 1 | |
| GPON Port Specification | QTY | 1 |
| Fiber Type | 9/125μm SM | |
| Connector | SC/UPC, TX:7.5±0.5dBm, Sen: -30dBm | |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | |
| Wavelength | TX 1490nm, RX 1310nm | |

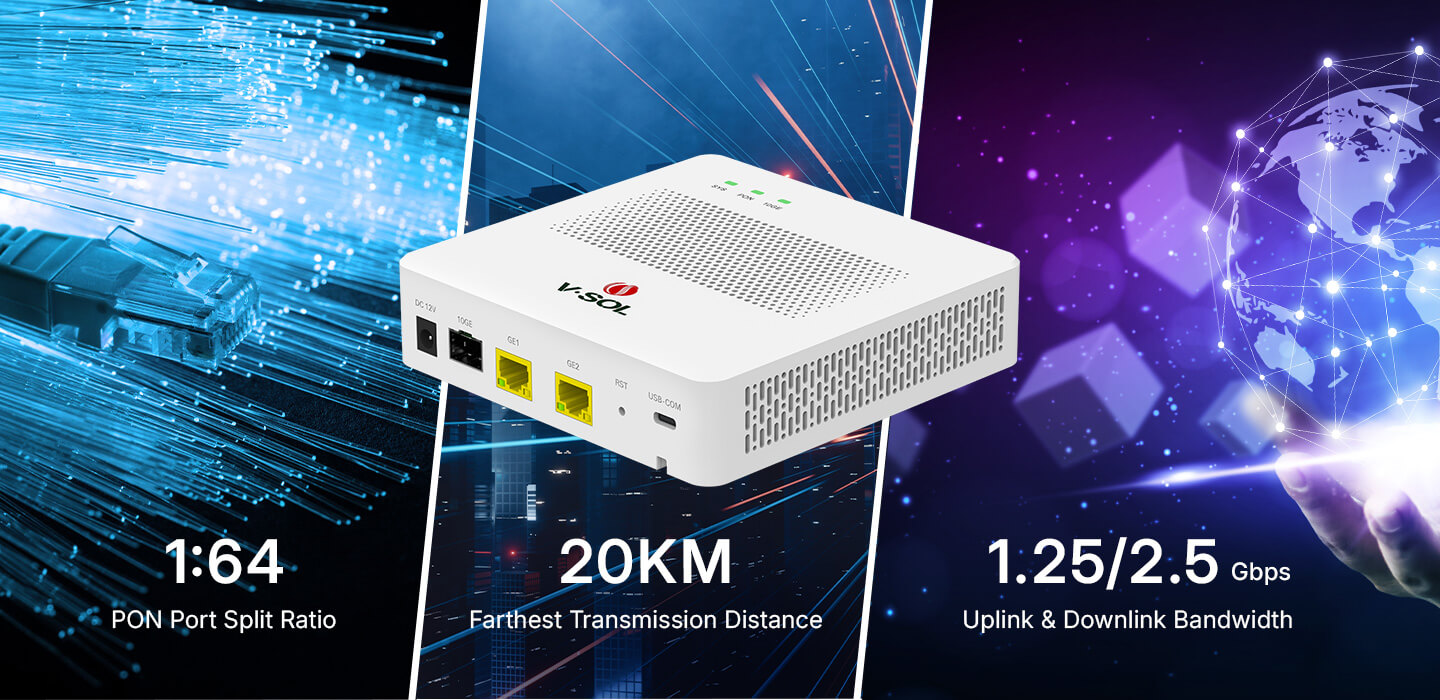

| Max splitting ratio | 1:64 | |
| Management Ports | 1*USB-COM(Type-C) port | |
| Backplane Bandwidth (Gbps) | 29 | |
| Port Forwarding Rate (Mpps) | 21.576 | |
| Management Mode | WEB/Telnet/CLI/SNMP | |
| Power Supply | DC Power Adapter | DC 12V/1A |
| Maximum power consumption of the whole machine | 5W | |
| Lightning protection level | Power supply | 4KV |
| Device Interface | 1KV | |
