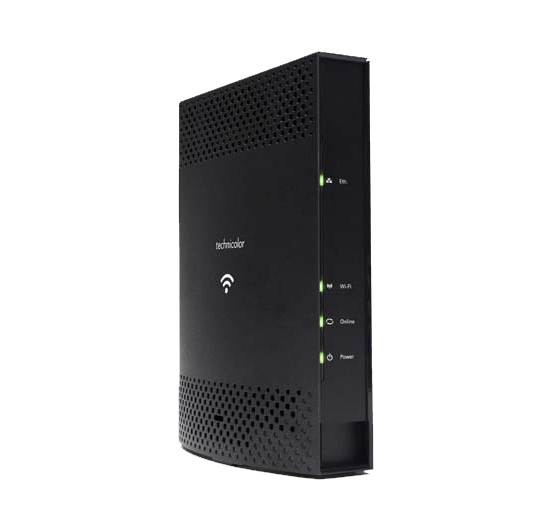

TECHNICOLOR TC7230

Next-Gen Wireless Technology

This enhanced wireless solution with beamforming technology enables even higher throughput and better coverage over the much less crowded 5 GHz radio, for real-time content delivery. As a dual band concurrent wireless gateway, the TC7230 also guarantees uninterrupted transmission of data services over IEEE 802.11n using the 2.4 GHz band.

Latest gigabit-class bandwidth Technology

The TC7230 is a (Euro)DOCSIS 3.0 wireless EMTA gateway introducing the next generation in ultrahigh-speed data services. This cable solution offers next to 8 bonded upstream channels, 24 bonded downstream channels for wired gigabit download speeds (up to 1.2 Gbps).

Other value-added applications such as a DLNA media server and hard disk sharing are also at your fingertips thanks to the TC7230’s dedicated application processor

Features:

• 24×8 Channel Bonding
• EuroDOCSIS 3.0
• Dual Mode DOCSIS / EuroDOCSIS
• Backward compatible with (Euro)DOCSIS 2.0 (and older)
• Voice EuroPacketCable 1.5 compliant

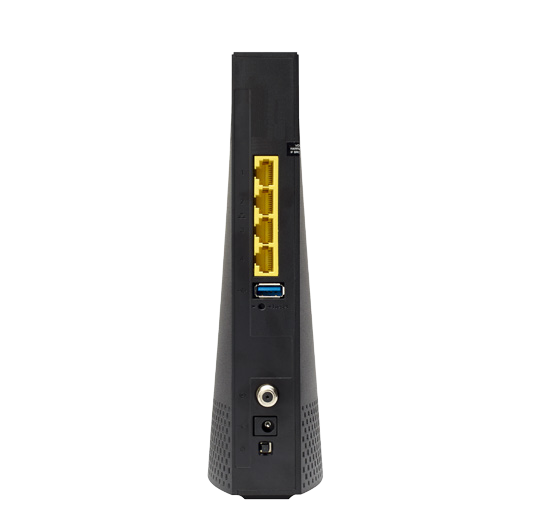

• 4 GbE LAN Ports
• Wireless Networking on Board
• IEEE 802.11n 2.4 GHz (2×2)
• IEEE 802.11ac 5.0 GHz (3×3)
• 2 FXS Ports for Phone or Fax
• 1 USB 2.0 Master Port
• Qeo Communication Framework and Apps
• IPv4 and IPv6 DS-Lite Support

Power Supply:

• 12 V DC
• 2.5 A
• 30 W
