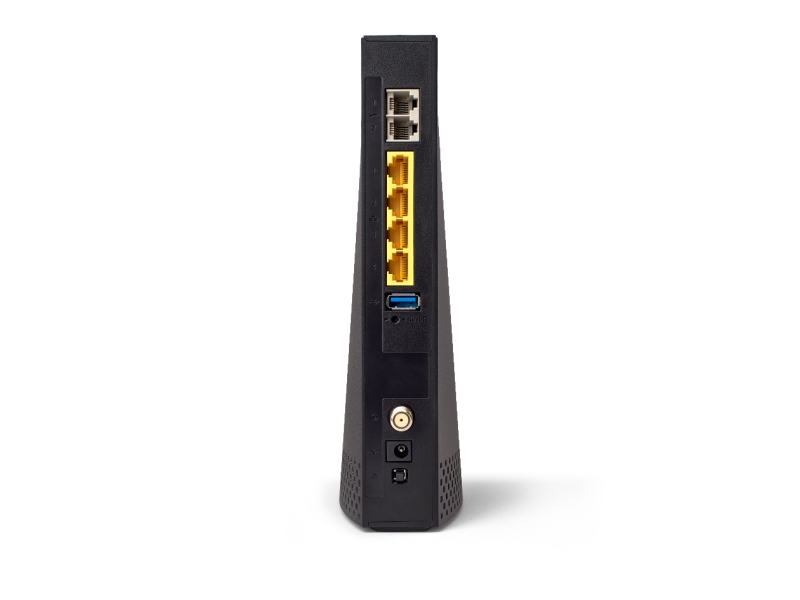

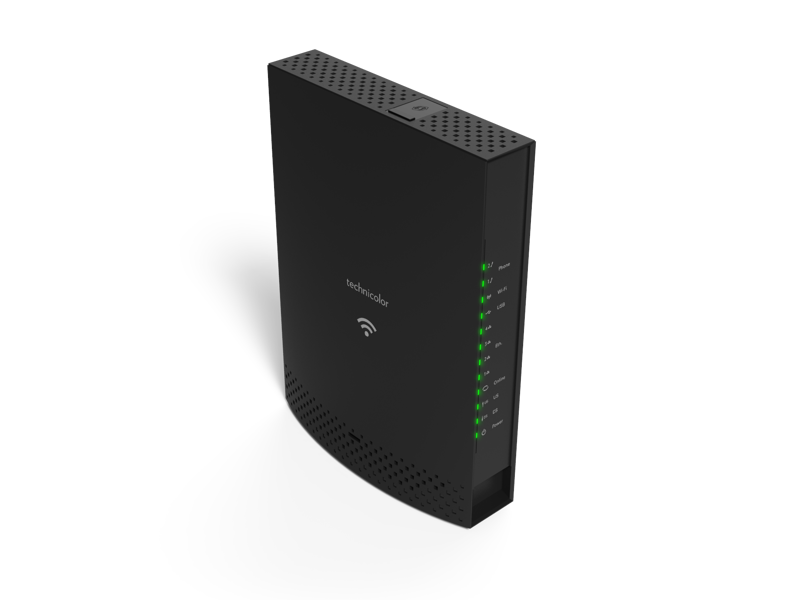

TECHNICOLOR TC7210

Next-Gen Wireless Technology

The TC7210 is one of the first dual band concurrent Wi-Fi ultra broadband gateways to feature the next-generation IEEE 802.11ac wireless standard for the 5 GHz band. With its optimized antenna configuration, this enhanced wireless solution enables even higher throughput and better coverage over the much less crowded 5 GHz radio, for real-time content delivery. Simultaneously, it guarantees uninterrupted transmission of data services over IEEE 802.11n using the 2.4 GHz band.

High-bandwidth Technology

The TC7210 is a (Euro)DOCSIS 3.0 wireless EMTA offers next to four bonded upstream channels, 16 bonded downstream channels for wired download speeds of up to 800 Mbps. Operators can now offer their customers even faster broadband access as well as demanding IPTV services. Other value-added applications such as a DLNA media server and hard disk sharing are also at your fingertips.

Features:

• 16×4 Channel Bonding
• EuroDOCSIS 3.0 certified
• Dual Mode DOCSIS / EuroDOCSIS
• Backward compatible with (Euro)DOCSIS 2.0 (and older)
• Voice EuroPacketCable 1.5 certified
• 4x GE LAN Ports
• Wireless Networking on Board:
• IEEE 802.11n 2.4 GHz (2×2)
• IEEE 802.11ac 5 GHz (3×3)
• 2 FXS Ports for Phone or Fax
• 1 USB Master Port
• MPEG2 over IP Encapsulation Solution
• Advanced Security Features
• IPv4 and IPv6 Support

Power Supply:

• 12 V DC
• 2 A
• 24 W
