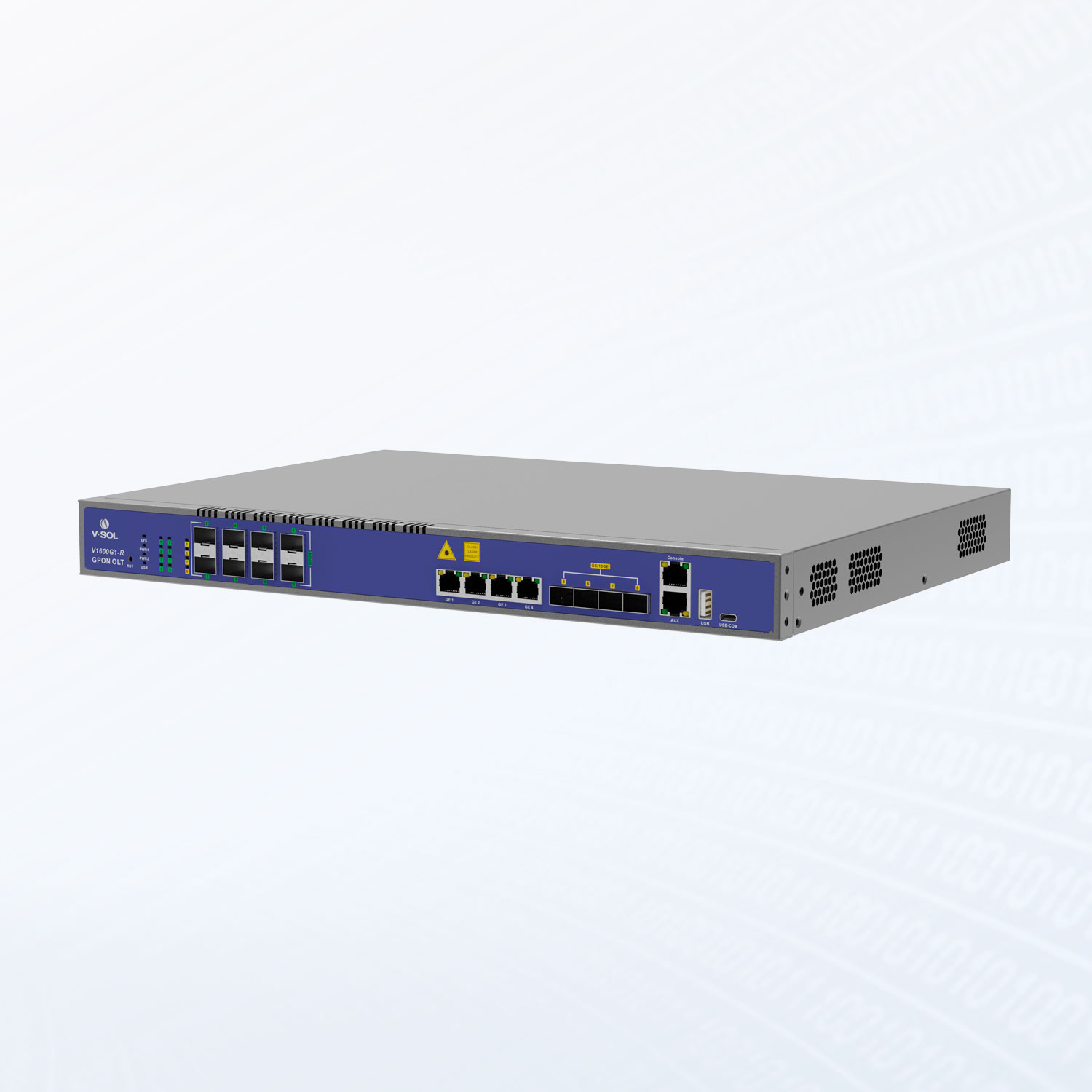

8 Port GPON OLT
Layer3 | Support Hot-swap | FTTM | Compact
Model: V1600G1-R
More Reliable, More Cost-effective, Lighter, Simpler
Product Highlights
Easy Access, Ready for Massive Users

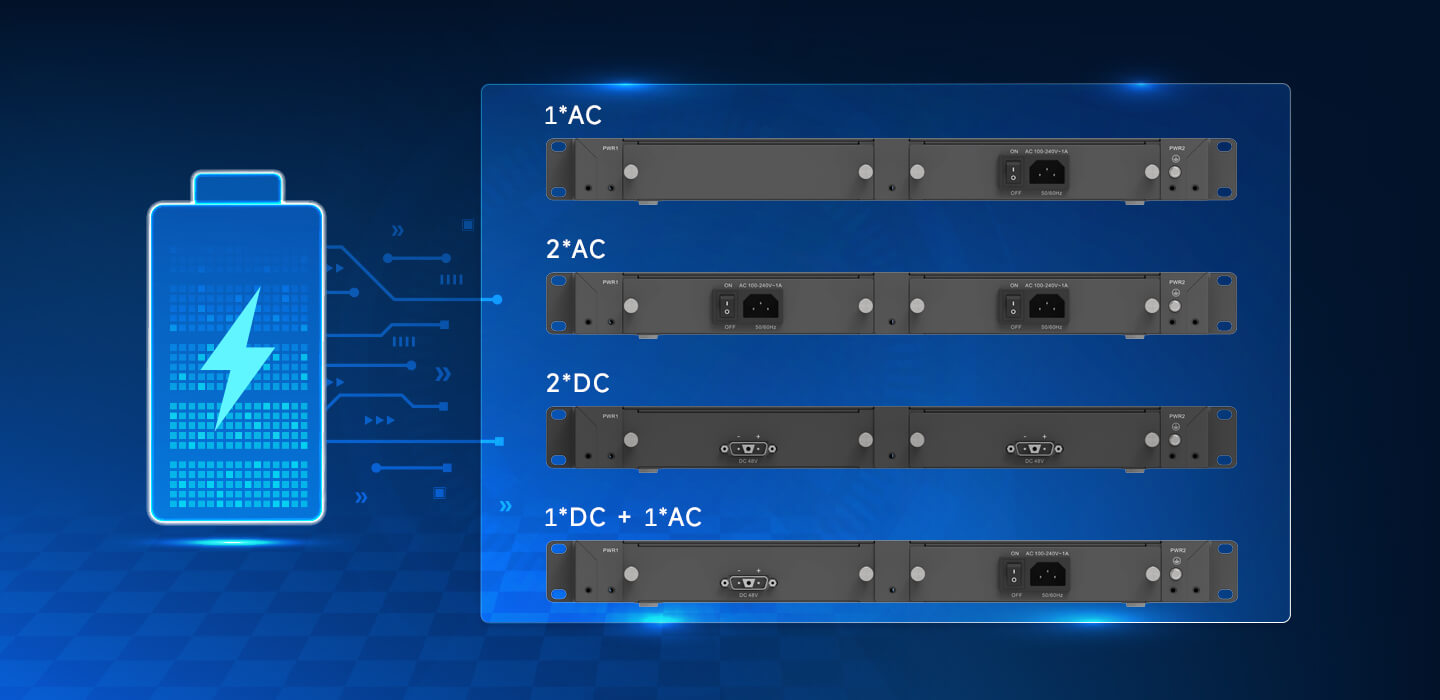

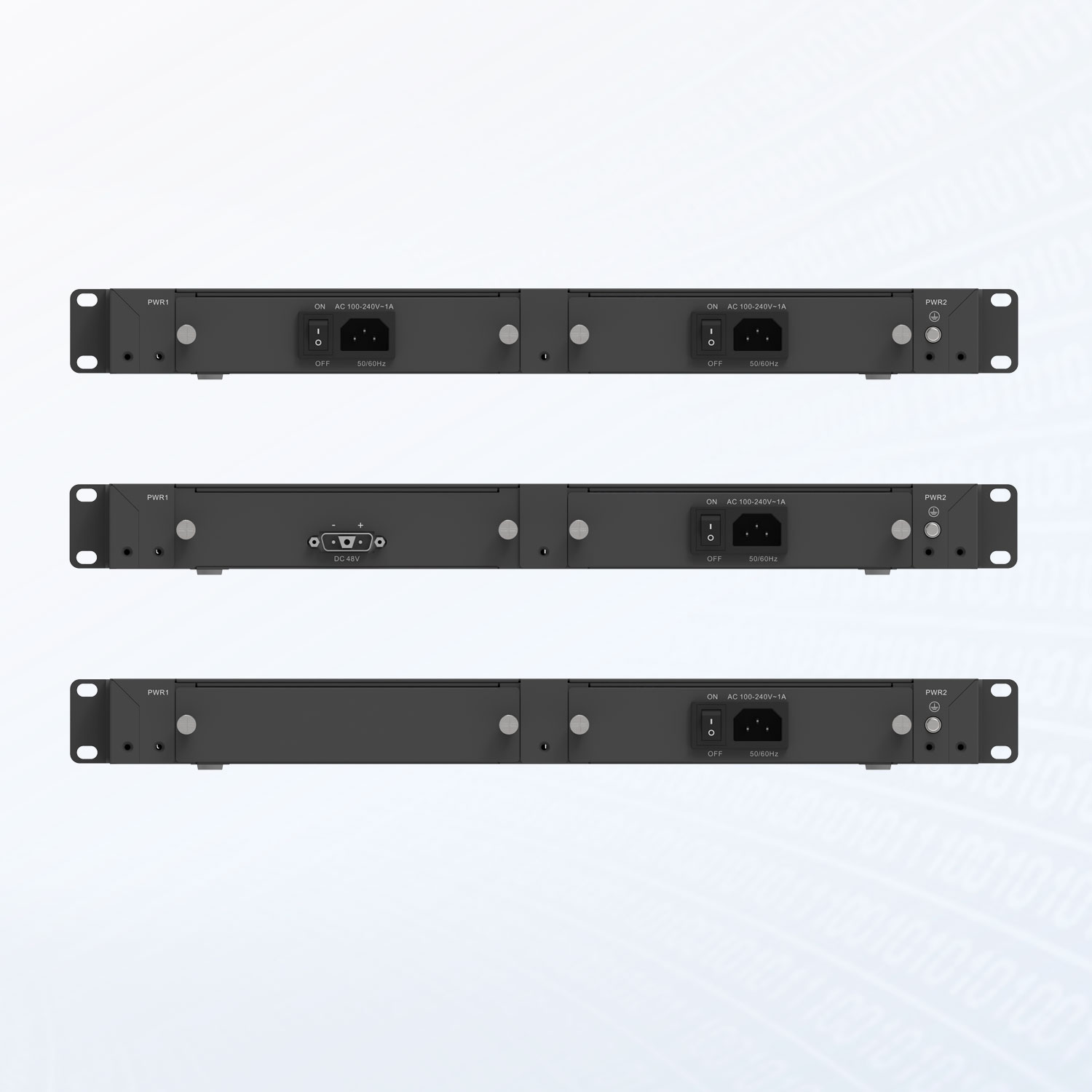

Flexible Power Options with Hot-Swap Support
Carrier-Grade Protection with Intelligent Routing
Compact Design for Flexible, Efficient Deployment
Small and lightweight — saves space and speeds up transport and installation!
Versatile for Diverse Deployment Scenarios
Supports FTTM deployment and rack sharing with wireless base stations.
| Item | V1600G1-R | |
| Chassis | Rack | 1U 19Inch Standard Box |
| Uplink Port | QTY | 8 |
| RJ45(GE) | 4 | |
| SFP(GE)/SFP+(10GE) | 4 | |
| GPON Port | QTY | 8 |
| Physical Interface | SFP Slots | |
| Max splitting ratio | 1:128 | |
| Management Ports | 1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB2.0, 1*Type-C USB (for console) | |
| Backplane Bandwidth (Gbps) | 240 | |
| Port Forwarding Rate (Mpps) | 124.992 | |
| PON Port Specification | Transmission Distance | 20KM |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | |
| Wavelength | TX 1490nm, RX 1310nm | |
| Connector | SC/UPC | |
| Fiber Type | 9/125μm SMF | |
| Supported PON module level | Class B+, C, C+, C++, C+++, C++++ | |
| Power Supply | AC | Working Voltage Range: 100~240V, Rated Voltage: 110V/220V |
| DC | Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V | |
| Management Mode | EMS, WEB, SNMP, Telnet, CLI | |
