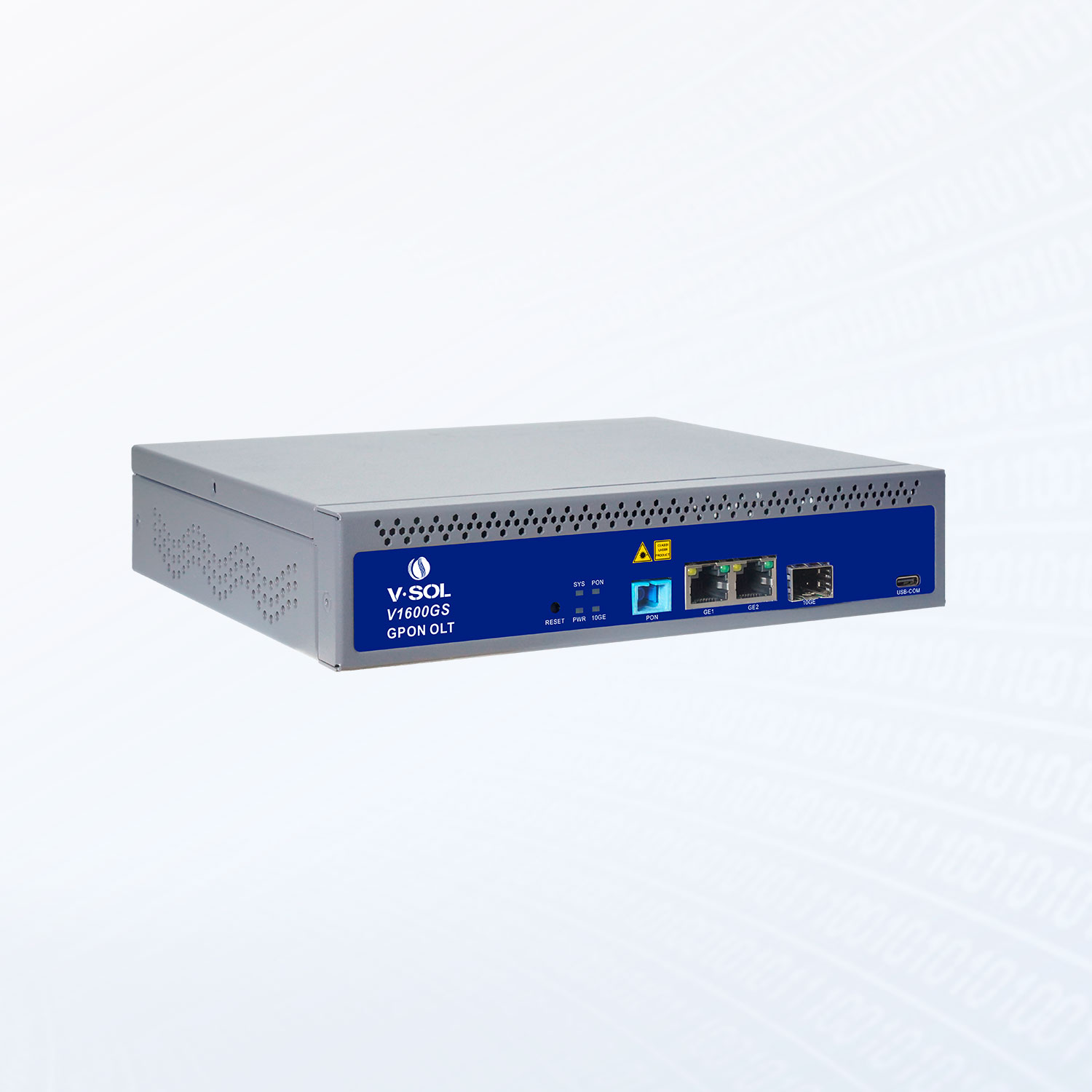

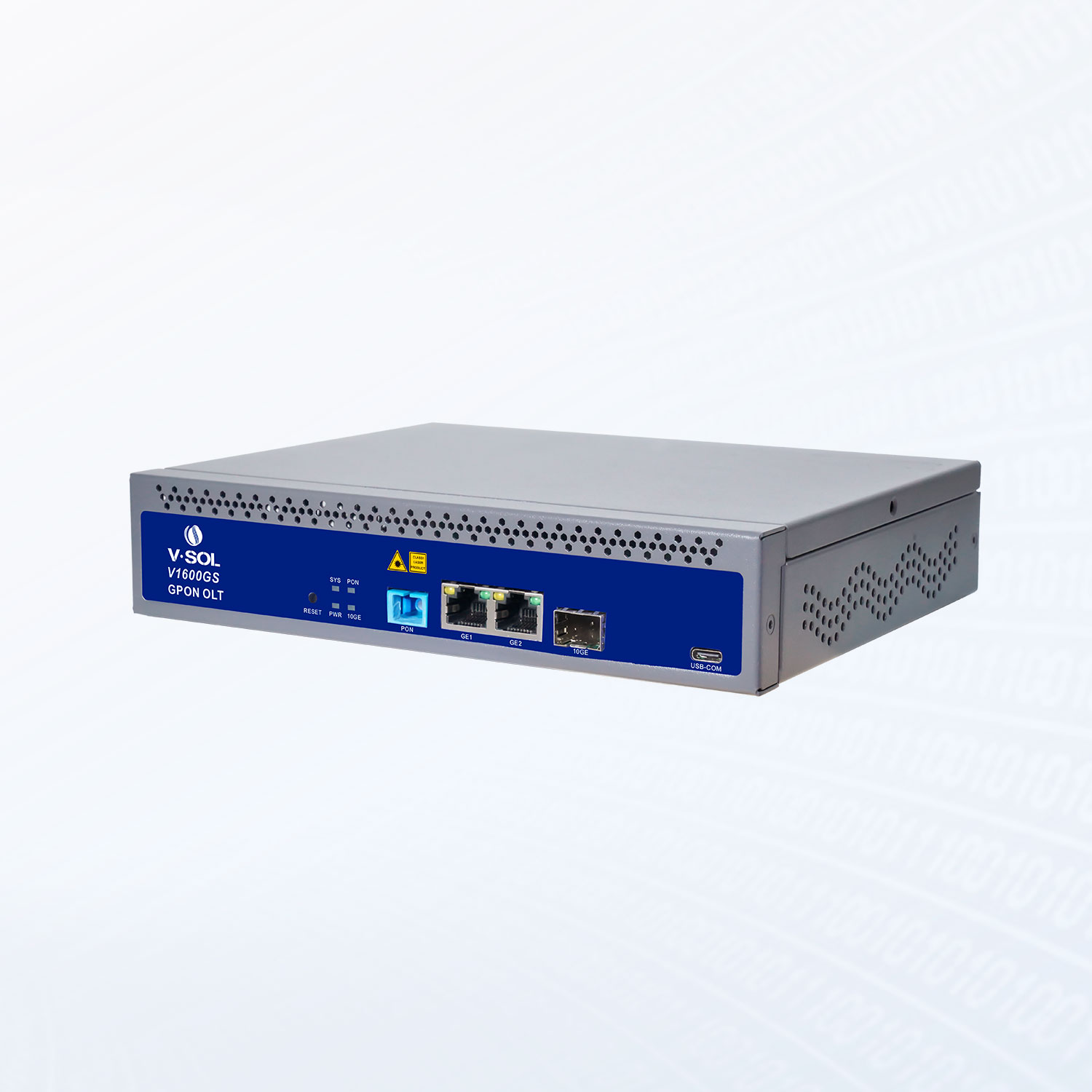

Single PON Mini GPON OLT
2.5Gbps | Optional Built-in Fan | POL networking
Model: V1600GS-F/V1600GS-ZF
All-in-one Single Port Mini GPON OLT
Suitable for SMB(Small and Medium-sized Businesses)
Integrated OLT, Gateway and AC Function
High-Speed Fiber Optic Coverage
Gigabit optical fiber covers the enterprise parks and the ultra-fast Wi-Fi covers every corner.

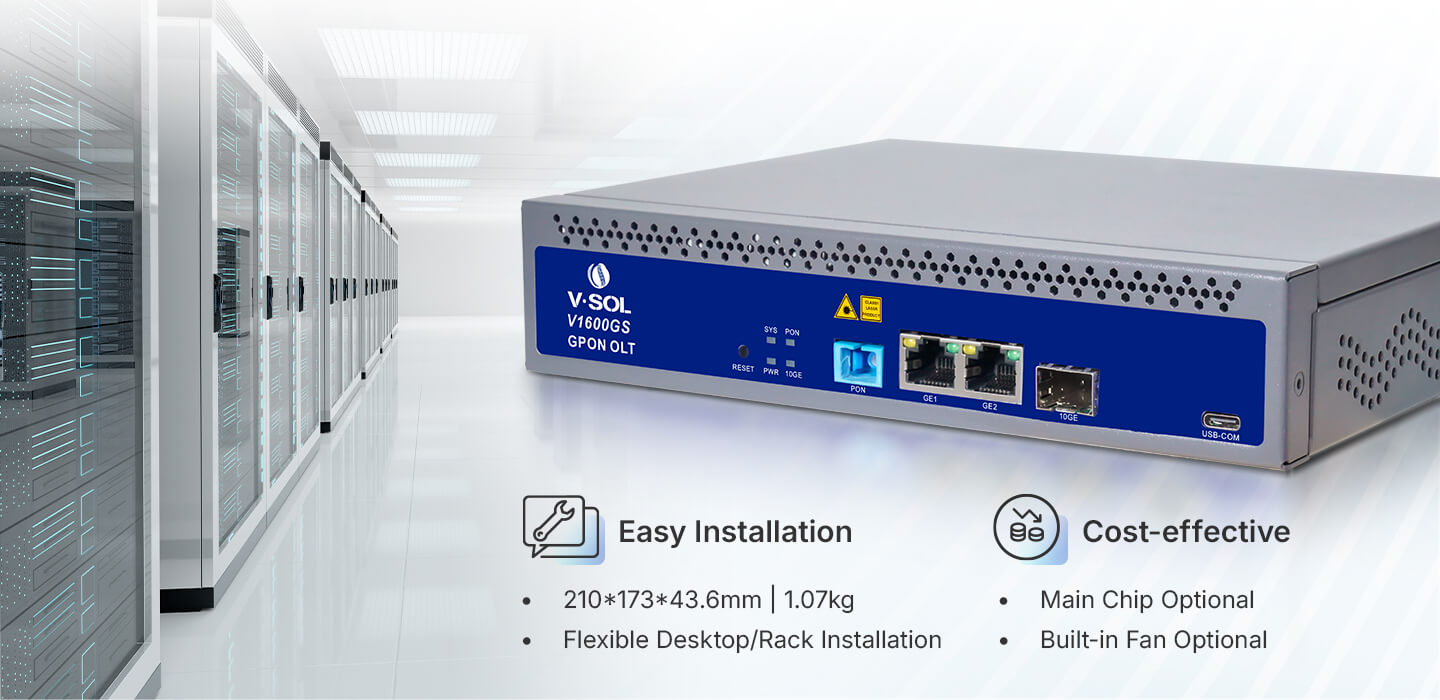

Easy Installation Saves Investment

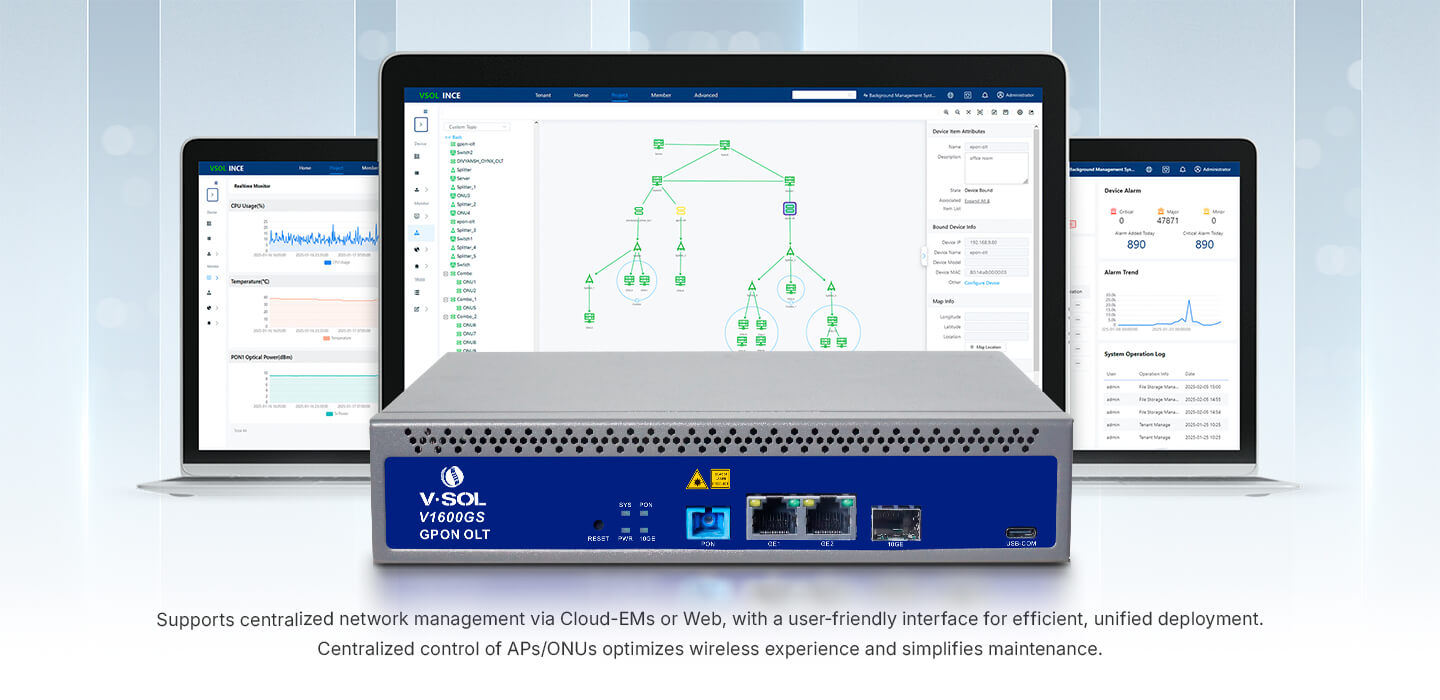

Centralized Management and Plug & Play

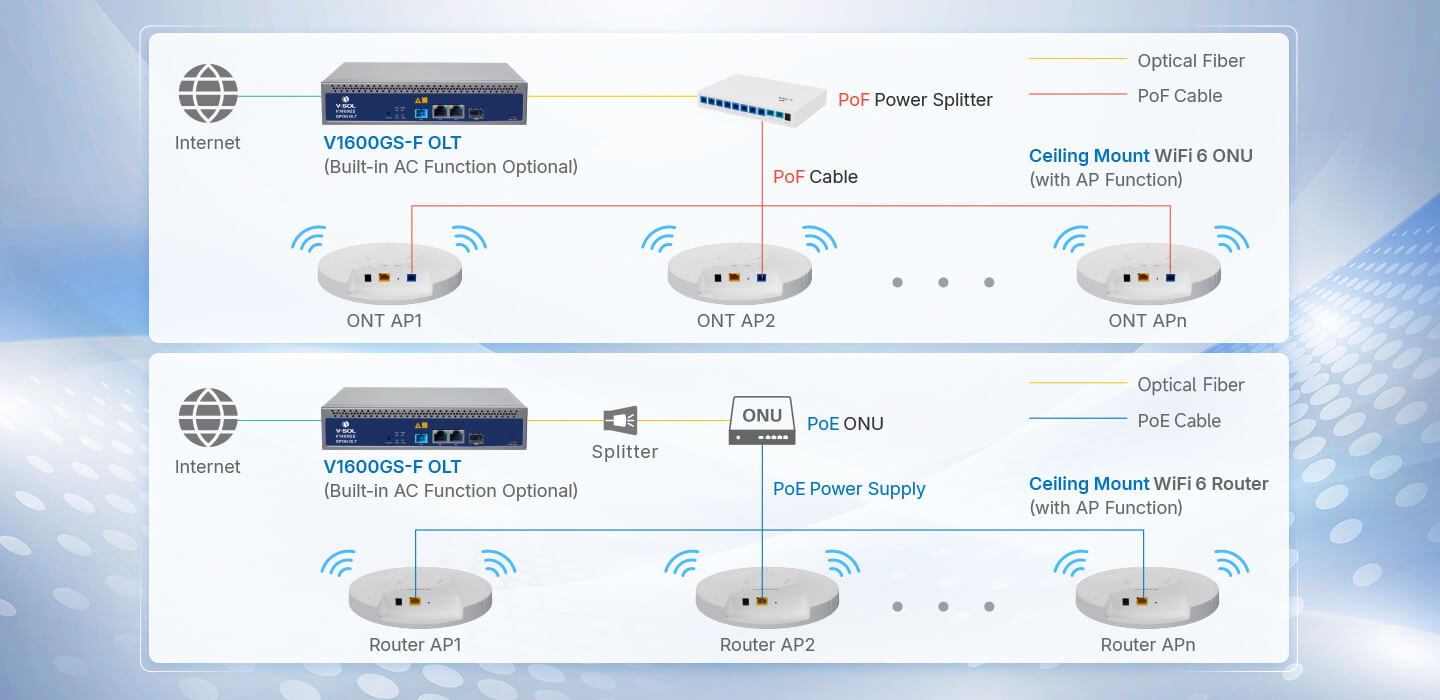

AC+AP Solution
Ideal for SMB networks upgrade! Effortlessly expand fast, stable Wi-Fi everywhere!

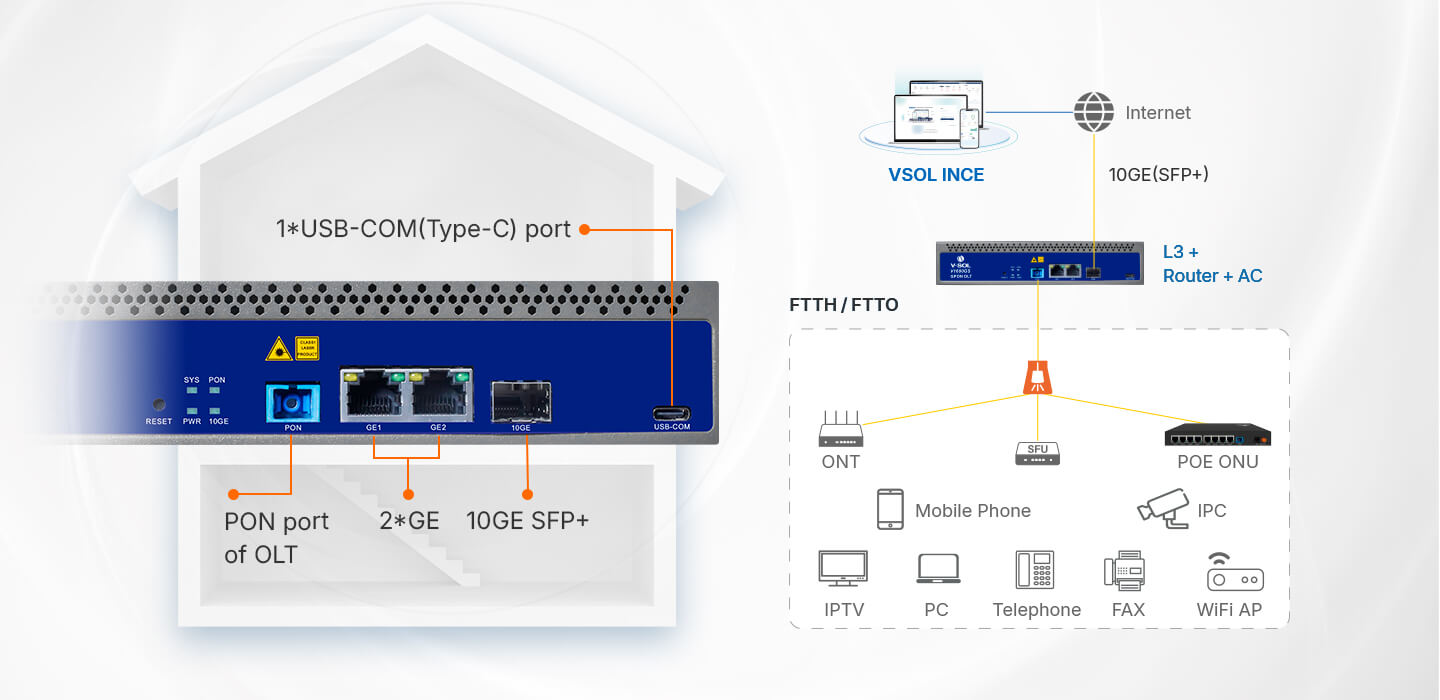

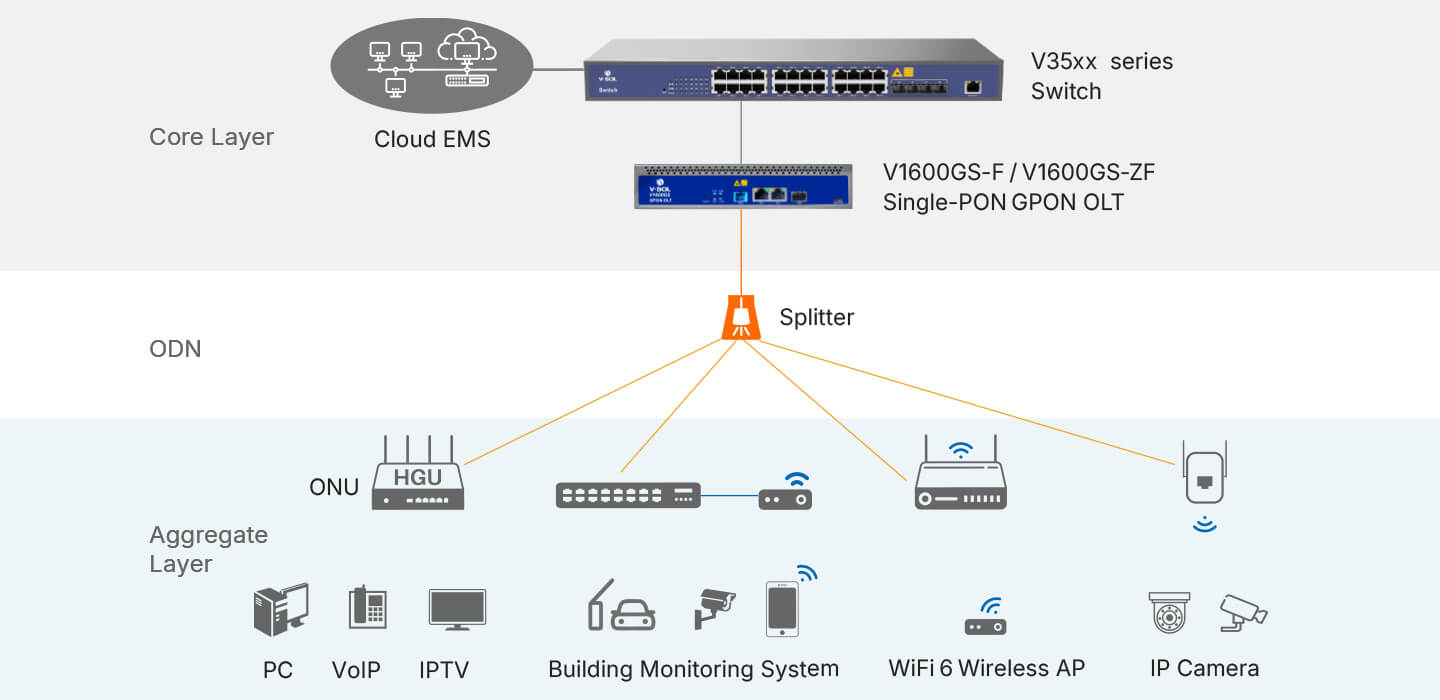

POL Network of Small & Medium-sized Enterprises
It applies to FTTH, SOHO, small business offices, and other flexible application scenarios.

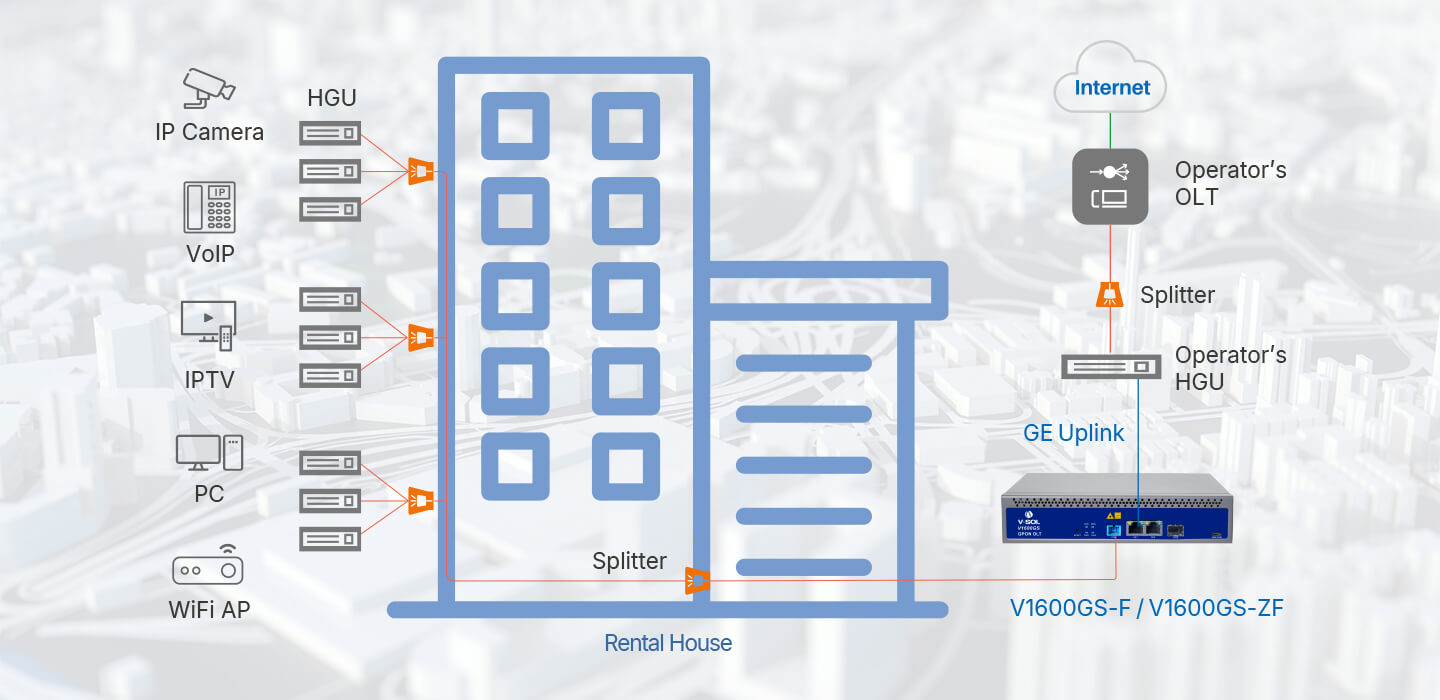

Rental Housing Network Renovation
Suitable for rental housing network renovation, able to adapt to different environments and needs.
| Item | V1600GS-F/V1600GS-ZF | |
| Chassis | Rack | 1U |
| GE/10GE Uplink Port |
QTY | 3 |
| RJ45(GE) | 2 | |
| SFP(GE)/SFP+(10GE) | 1 | |
| GPON Port Specification | QTY | 1 |
| Fiber Type | 9/125μm SM | |
| Connector | SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm | |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | |
| Wavelength | TX 1490nm, RX 1310nm | |

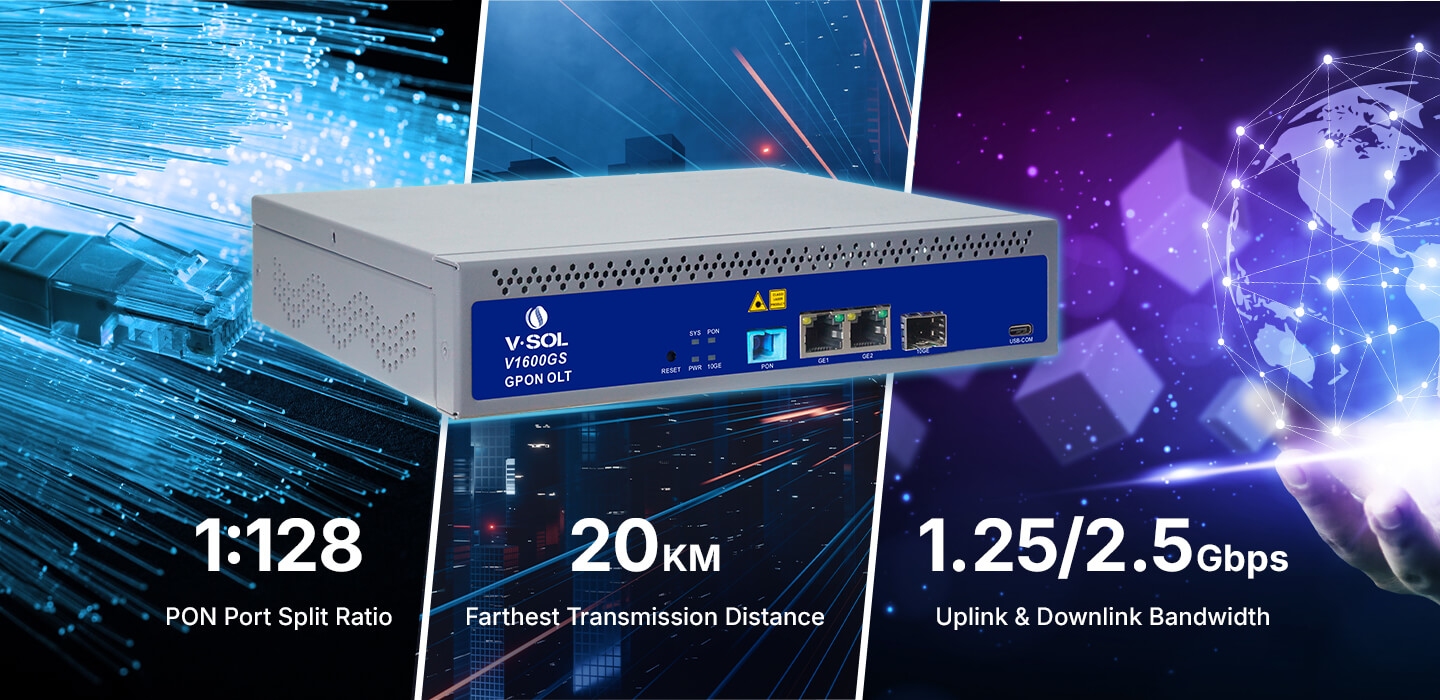

| Max splitting ratio | 1:128 | |
| Transmission Distance | 20KM | |
| Management Ports | 1*USB-COM(Type-C) port | |
| Backplane Bandwidth (Gbps) | 29 | |
| Port Forwarding Rate (Mpps) | 21.576 | |
| Management Mode | WEB/Telnet/CLI/SNMP | |
| Power Supply | AC Power Adapter | Working Voltage Range: 100~240V, Rated Voltage: 110V/220V |
| DC Power Adapter | DC 12V/2A | |
| Lightning Protection Level | Power supply | 4KV |
| Device Interface | 1KV | |
