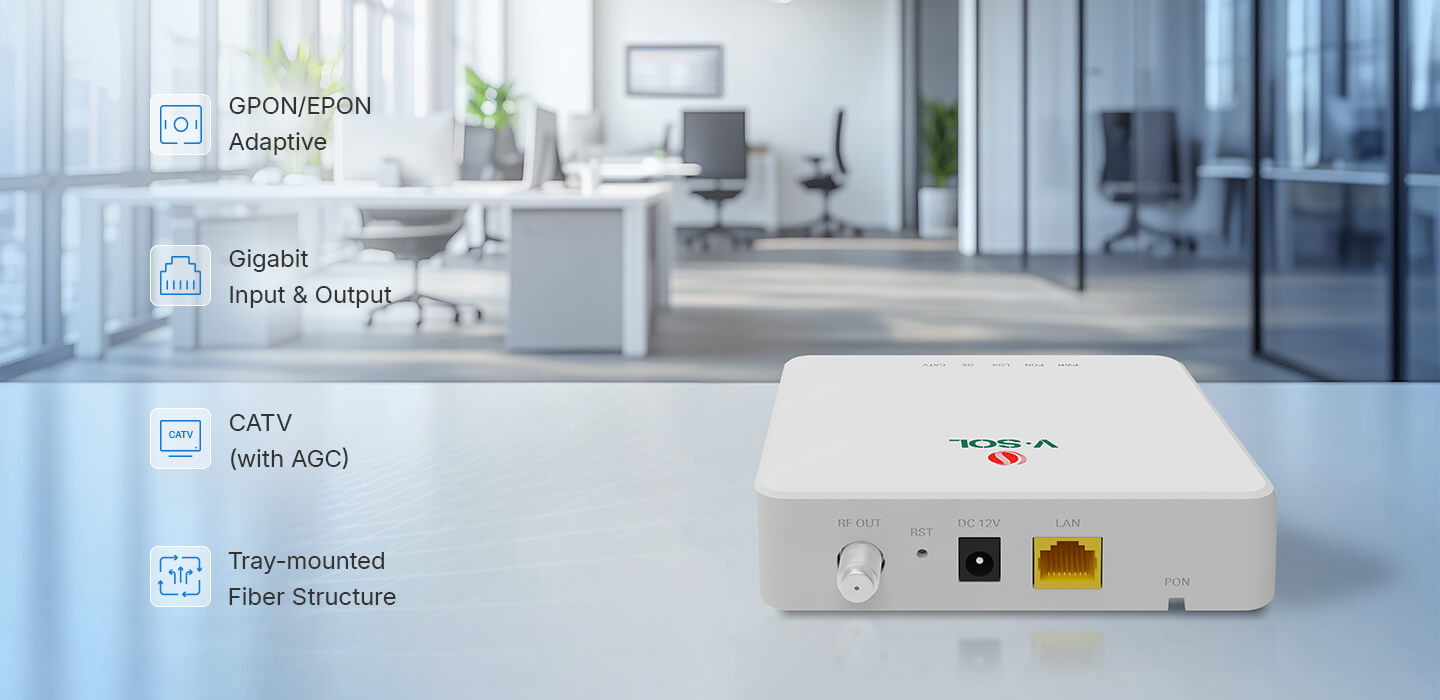

XPON+1GE+CATV ONT

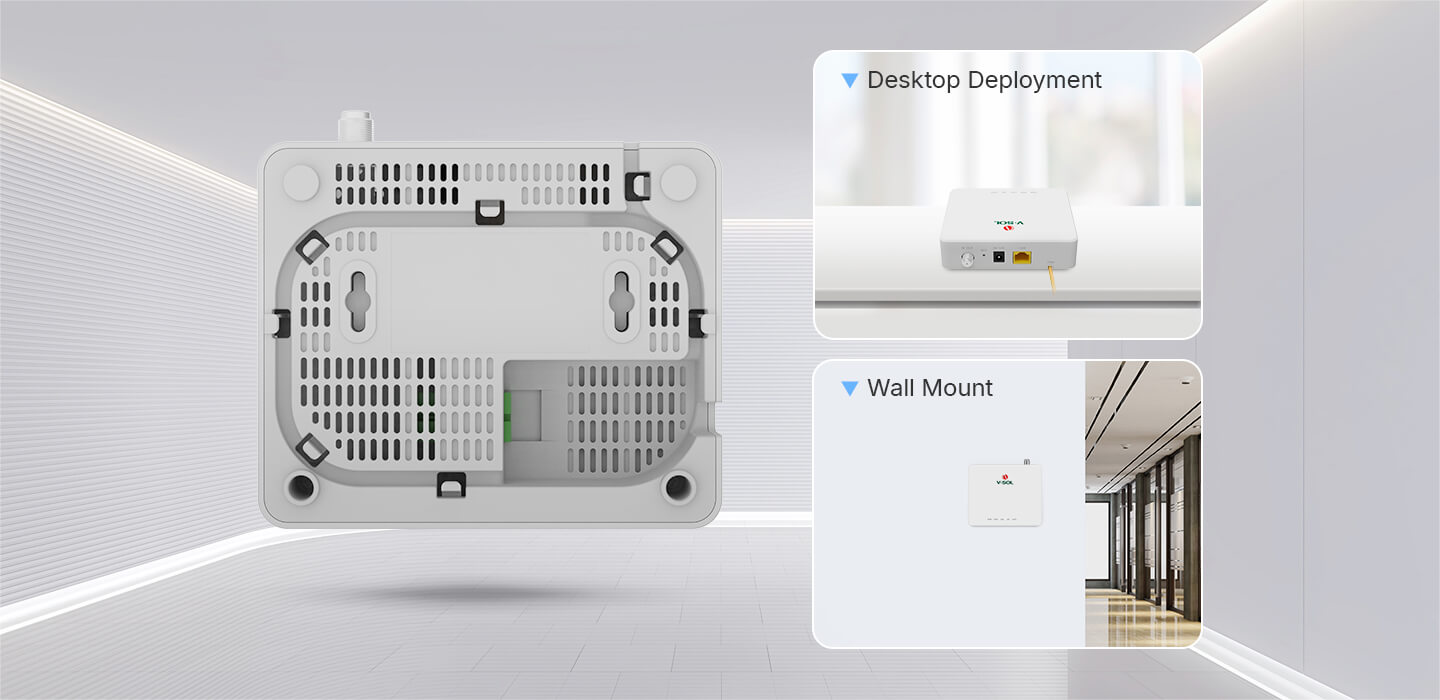

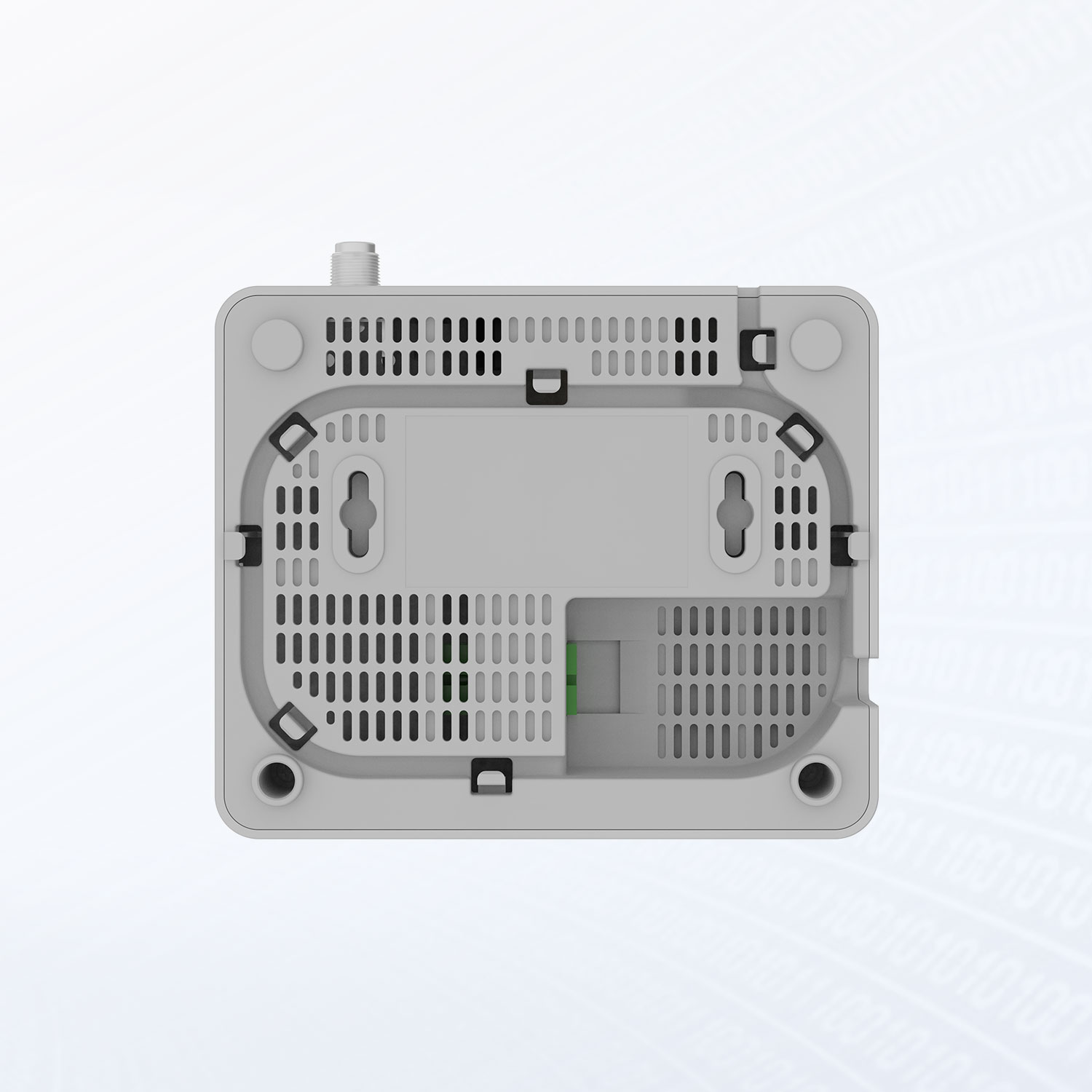

Space-saving cable storage for enhanced safety and reduced fault risk.

Hardware Parameter
Dimension	120mm×100mm×30mm（L×W×H）
Net weight	160g
Operating condition	Operating Temp: -10 ~ +55°C Operating Humidity: 5 ~ 95% (non-condensing)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing)
Power adapter	DC 12V/0.5A, external AC-DC power adaptor
Power supply	≤ 4.2W

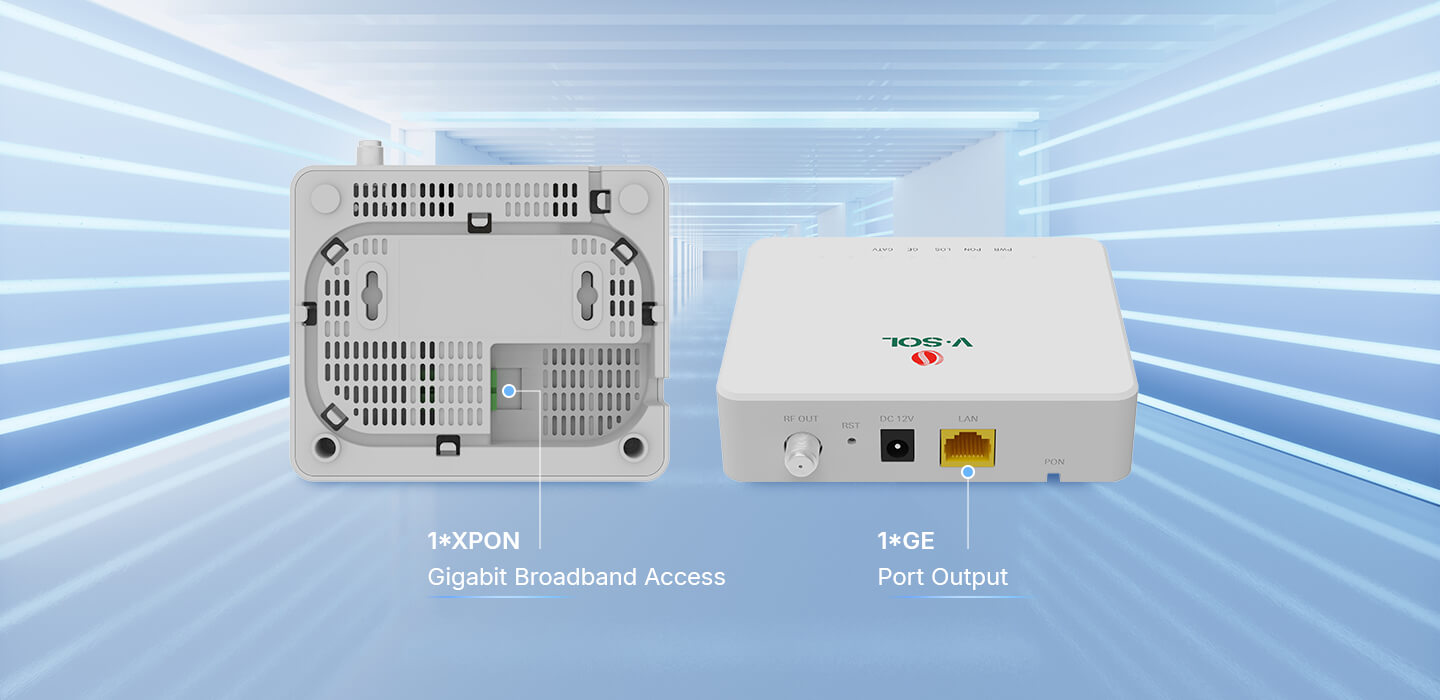

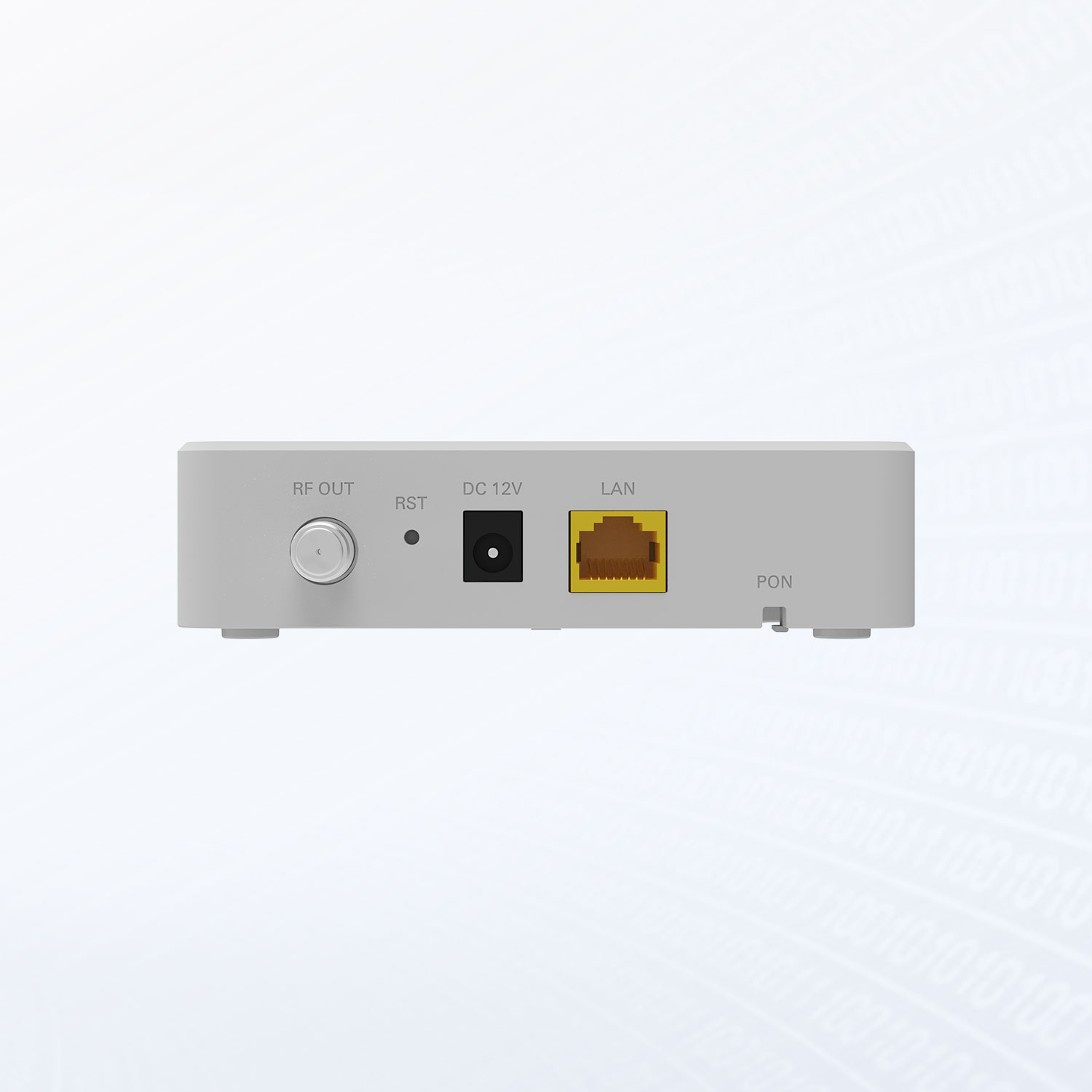

Interface	1GE + CATV

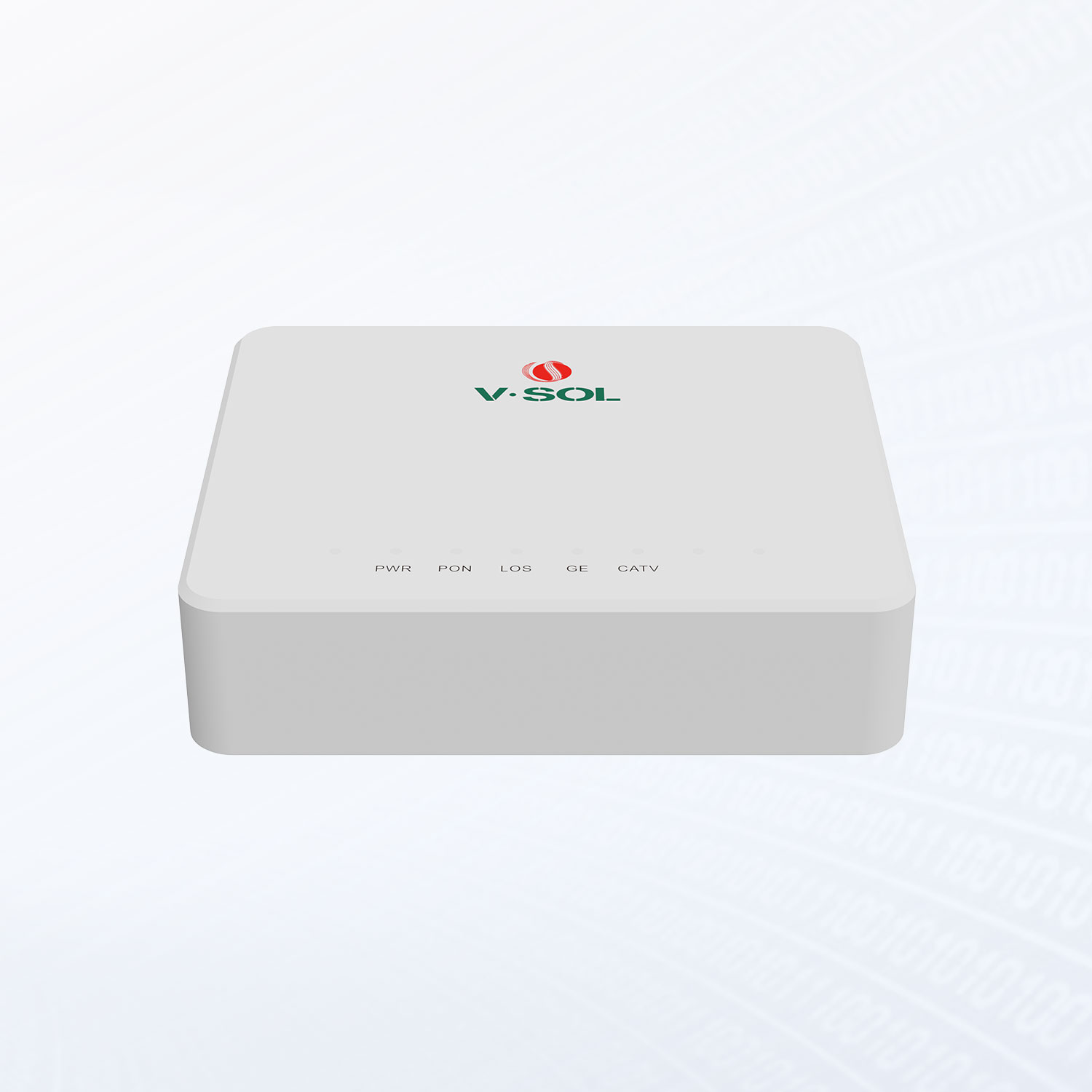

Indicators	POWER, LOS, PON, LAN, CATV

Interface Parameter
PON interface	1 XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0 ~ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm, CATV 1550nm
LAN interface	1*GE Auto-negotiation RJ45 ports

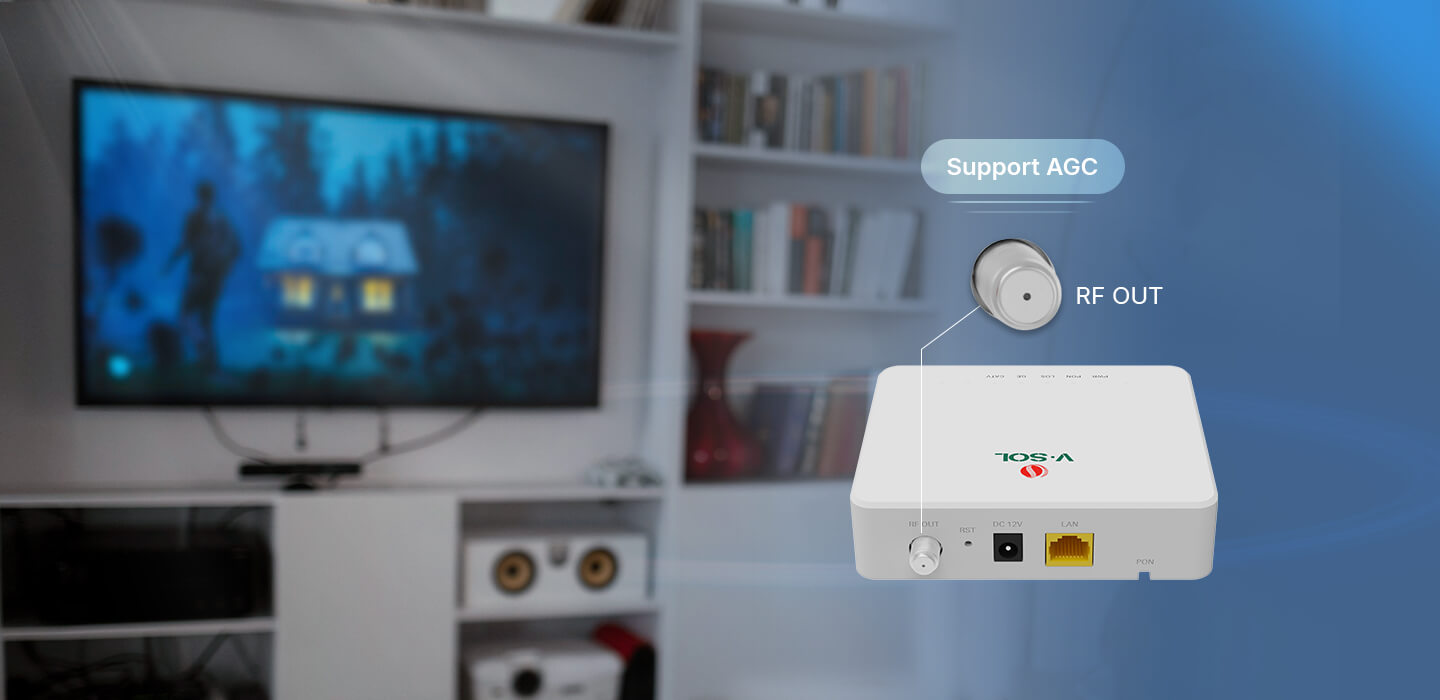

CATV interface	Optical receiving wavelength: 1550±10nm Optical input range: +2～-18dBm Optical reflection loss: ≥40dB RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1～-10dBm ≥79±2dBuv@ 0～-11dBm ≥77±2dBuv@-1～-12dBm ≥75±2dBuv@-2～-13dBm ≥73±2dBuv@-3～-14dBm ≥71±2dBuv@-4～-15dBm MER: ≥32dB (-14dBm optical input)

Function Data
PON Mode	XPON Dual Mode
Uplink Mode	Bridging and Routing Mode Well connect with OLTs of mainstream
CATV	Support CATV Remote management
Standard	Support CTC OAM 2.1 and 3.0 Support ITUT984.x OMCI
Layer2	802.1D & 802.1ad bridging 802.1p CoS 802.1Q VLAN
Layer3	IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS
Multicast	IGMP v2/v3, IGMP snooping
Security and Firewall	Prevent Rogue ONU DDOS, Filtering Based on ACL/MAC/URL
O&M	Support EMS\WEB\Telnet\CLI and unified network management of VSOL OLT

Weight	0,16 kg
Dimensions	12 × 10 × 3 cm
